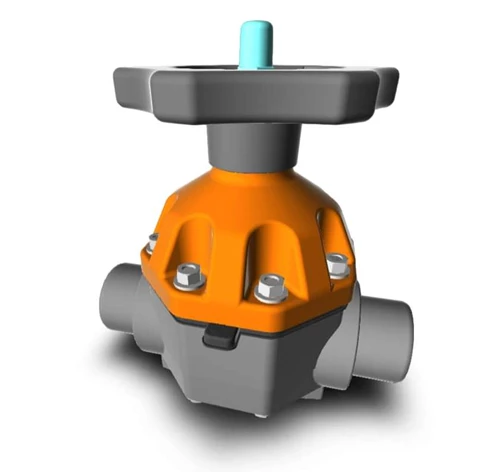

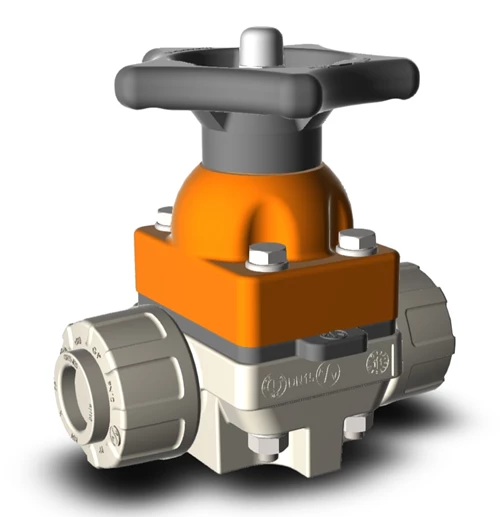

PP STÜBBE DIAPHRAGM VALVE
PP diaphragm valve union with internal sleeve-mandrel welding. Handwheel with visual indication.
Gasket in EPDM. The item can be delivered with FPM gasket on request.
The valve can also be supplied in threaded and flanged versions.
Check the documents to see which products are covered by the approvals.
Diameter (mm)
| Dia. | Name | Pressure Rating | Weight per pcs | ||
|---|---|---|---|---|---|
20 | PP DIAPHRAGM VALVE MV310 10533300 | 10 | 0.41 | ||
25 | PP DIAPHRAGM VALVE MV310 10533305 | 10 | 0.456 | ||
32 | PP DIAPHRAGM VALVE MV310 10533310 | 10 | 0.87 | ||
40 | PP DIAPHRAGM VALVE MV310 10533315 | 10 | 1.032 | ||
50 | PP DIAPHRAGM VALVE MV310 10533320 | 10 | 1.768 | ||
63 | PP DIAPHRAGM VALVE MV310 10533325 | 10 | 2.066 | ||
75 | PP DIAPHRAGM VALVE MV310 10533330 | 10 | 5.616 | ||
90 | PP DIAPHRAGM VALVE MV310 10533335 | 10 | 5.64 | ||
110 | PP DIAPHRAGM VALVE MV310 10533340 | 10 | 8.36 |
