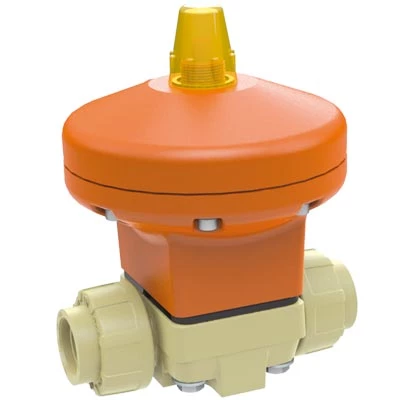

PP STÜBBE DIAPHRAGM VALVE WITH PNEUMATIC ACTUATOR, DA, EPDM
PP pneumatically actuated diaphragm valve, designed with union ends for socket-spigot welding. It features a visual position indicator for straightforward status monitoring during operation.
The valve is equipped with an EPDM diaphragm as standard, offering reliable performance and chemical resistance in a wide range of industrial applications. Upon request, the valve can be supplied with an FPM (Viton®) diaphragm for enhanced compatibility with aggressive media.
Threaded (BSP/NPT) and flanged (DIN/ANSI) versions are also available to accommodate different installation requirements.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Name | Pressure Rating | Weight per pcs | ||
|---|---|---|---|---|---|
20 | PP DIAPHRAGM VALVE MV310 PNEU.DA 10533550 | 10 | 1.133 | ||
25 | PP DIAPHRAGM VALVE MV310 PNEU.DA 10533555 | 10 | 1.185 | ||
32 | PP DIAPHRAGM VALVE MV310 PNEU.DA 10533560 | 10 | 1.961 | ||
40 | PP DIAPHRAGM VALVE MV310 PNEU.DA 10533565 | 10 | 2.119 | ||
50 | PP DIAPHRAGM VALVE MV310 PNEU.DA 10533570 | 10 | 3.593 | ||
63 | PP DIAPHRAGM VALVE MV310 PNEU.DA 10533575 | 10 | 3.879 |
