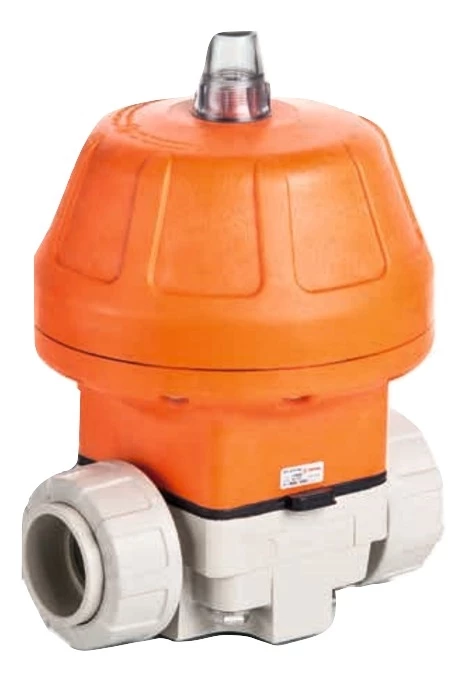

PP STÜBBE DIAPHRAGM VALVE WITH PNEUMATIC ACTUATOR, NC, EPDM
PP pneumatically actuated diaphragm valve, featuring union ends for socket-spigot welding. It is supplied in a normally closed (NC) configuration and includes a visual position indicator for clear and reliable valve status monitoring.
An EPDM diaphragm is provided as standard, ensuring dependable performance and chemical resistance. For applications involving more aggressive media, an FPM (Viton®) diaphragm is available on request.
The valve is also available with threaded (BSP/NPT) or flanged (DIN/ANSI) end connections to suit various installation systems.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
| Dia. | Name | Pressure Rating | Weight per pcs | ||
|---|---|---|---|---|---|
20 | PP DIAPHRAGM VALVE MV310 PNEU.NC 10533520 | 10 | 1.504 | ||
25 | PP DIAPHRAGM VALVE MV310 PNEU.NC 10533525 | 10 | 1.556 | ||
32 | PP DIAPHRAGM VALVE MV310 PNEU.NC 10533530 | 10 | 2.818 | ||
40 | PP DIAPHRAGM VALVE MV310 PNEU.NC 10533535 | 10 | 2.976 | ||
50 | PP DIAPHRAGM VALVE MV310 PNEU.NC 10533540 | 10 | 5.563 | ||
63 | PP DIAPHRAGM VALVE MV310 PNEU.NC 10533545 | 10 | 5.849 |
