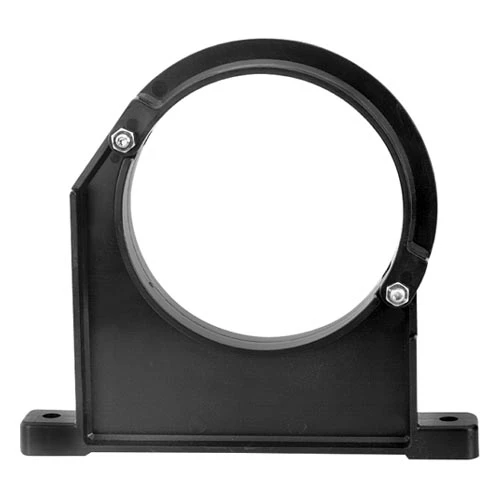

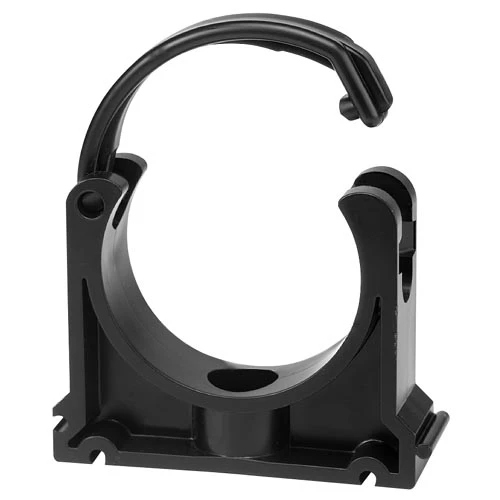

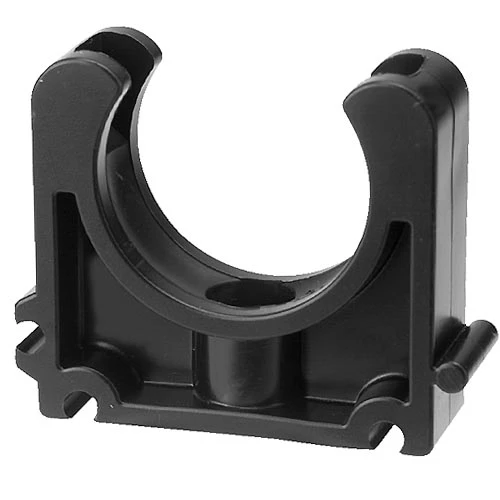

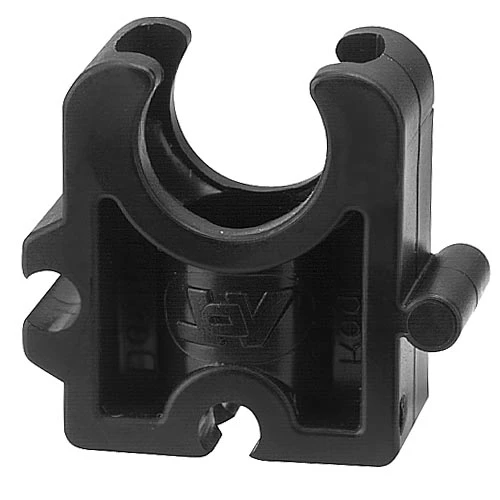

PP TUBE CLIP

Black PP pipe carrier in strong VDL quality

For hanging plastic pipes,

40 mm and up are with hanger,

32 mm is available both with and without hanger

25 and under is without brace

Check the documents to see which products are covered by the approvals.

Dia.	Name	Sub material	Weight per pcs
10	PP TUBE CLIP 10503480	PP	0.0035
12	PP TUBE CLIP 10503482	PP	0.0034
16	PP TUBE CLIP 10503490	PP	0.006
20	PP TUBE CLIP 10503495	PP	0.007
25	PP TUBE CLIP 10503500	PP	0.011
32	PP TUBE CLIP WITH CLIP 10503506	PP	0.022
32	PP TUBE CLIP WITHOUT CLIP 10503505	PP	0.015
40	PP TUBE CLIP 10503510	PP	0.026
50	PP TUBE CLIP 10503515	PP	0.034
63	PP TUBE CLIP 10503520	PP	0.044
75	PP TUBE CLIP 10503525	PP	0.096
90	PP TUBE CLIP - TYPE F 10503531	PP	0.168
90	PP TUBE CLIP 10503530	PP	0.098
110	PP TUBE CLIP 10503535	PP	0.128
110	PP TUBE CLIP TYPE F 10503536	PP	0.184
