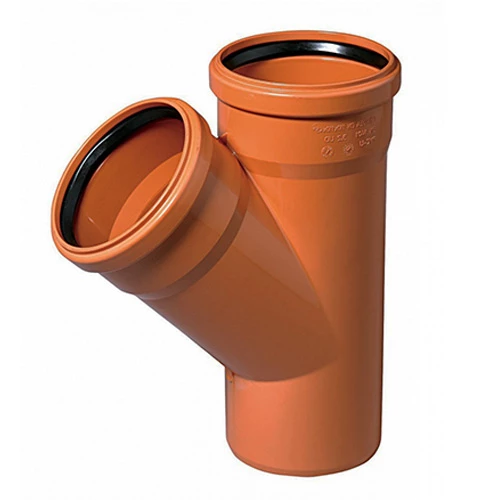

PVC 45°/87° SEWAGE BRANCH
PVC DRAINAGE FITTING FOR WASTEWATER - BRANCH 45 DEGREES
Check the documents to see which products are covered by the approvals.
Diameter (mm)
Angle
Has technical drawing
| Dia. | Dia. 2 | Name | Angle | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
110 | 110 | PVC SEWAGE BRANCH 10190080 | 45 | PVC | 0.692 | ||
110 | 110 | PVC SEWAGE BRANCH 10190110 | 87 | PVC | 0.549 | ||
125 | 110 | PVC SEWAGE BRANCH 10190112 | 87 | PVC | 0.698 | ||
125 | 125 | PVC SEWAGE BRANCH 10190083 | 45 | PVC | 0.89 | ||
125 | 125 | PVC SEWAGE BRANCH 10190113 | 87 | PVC | 0.698 | ||
160 | 160 | PVC SEWAGE BRANCH 10190120 | 87 | PVC | 1.352 | ||
160 | 160 | PVC SEWAGE BRANCH 10190090 | 45 | PVC | 1.667 | ||
200 | 200 | PVC SEWAGE BRANCH 10190105 | 45 | PVC | 3.758 | ||
200 | 200 | PVC SEWAGE BRANCH 10190135 | 87 | PVC | 2.456 | ||
250 | 250 | PVC SEWAGE BRANCH 10191086 | 45 | PVC | 6.179 | ||
250 | 250 | PVC SEWAGE BRANCH 10191126 | 87 | PVC | 5.478 | ||
315 | 315 | PVC SEWAGE BRANCH 10191097 | 45 | PVC | 10.83 | ||
315 | 315 | PVC SEWAGE BRANCH 10191136 | 87 | PVC | 7.737 | ||
400 | 400 | PVC SEWAGE BRANCH 10191108 | 45 | PVC | 29.246 | ||
400 | 400 | PVC SEWAGE BRANCH 10191148 | 87 | PVC | 19.299 |
