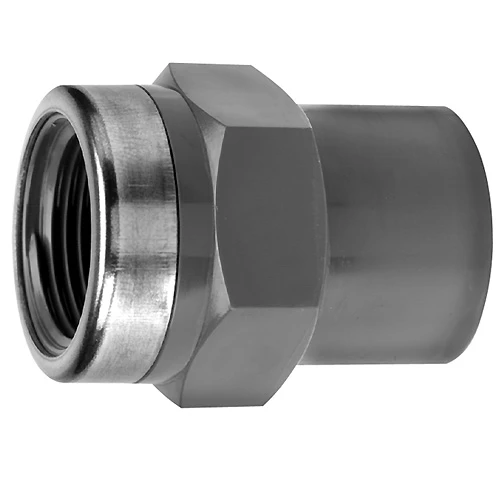

PVC ADAPTOR MALE X FEMALE WITH REINFORCING RING
PVC solvent / threaded fittings is suitable for installations up to 16 bar (at 20°C) for transport of fluids for example irrigation, industry and swimmingpool installations. PVC solvent / threaded fittings is produced according to international standards including ISO264, 727, 2536, 3460, KIWA Criteria Std. No. 54 and DIN8063, 19532, UNI EN 1452-3, AFNOR 54-029 and 54-028. Color is grey according to standards. Reinforcing ring in stainless steel. PVC solvent / threaded fittings is joined using PVC solvent cement and PTFE tape.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Has technical drawing
| Dia. | Dia. (inch) | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
16 | 3/8" | PVC ADAPTOR SOCKET MALE/FEMALE - REINFORCED 10507600 | 16 | PVC / stainless steel | 0.016 | ||
20 | 1/2" | PVC ADAPTOR SOCKET MALE/FEMALE - REINFORCED 10507605 | 16 | PVC / stainless steel | 0.015 | ||
20 | 3/4" | PVC ADAPTOR SOCKET MALE/FEMALE - REINFORCED 10507610 | 16 | PVC / stainless steel | 0.028 | ||
25 | 3/4" | PVC ADAPTOR SOCKET MALE/FEMALE - REINFORCED 10507620 | 16 | PVC / stainless steel | 0.14 | ||
25 | 1" | PVC ADAPTOR SOCKET MALE/FEMALE - REINFORCED 10507625 | 16 | PVC / stainless steel | 0.047 | ||
40 | 1 1/4" | PVC ADAPTOR SOCKET MALE/FEMALE - REINFORCED 10507645 | 16 | PVC / stainless steel | 0.14 | ||
50 | 2" | PVC ADAPTOR SOCKET MALE/FEMALE - REINFORCED 10507660 | 16 | PVC / stainless steel | 0.106 |
