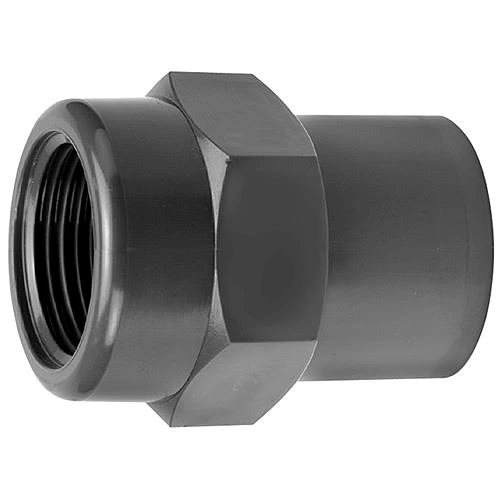

PVC ADAPTOR WITH FEMALE THREAD
PVC solvent / threaded fittings is suitable for installations up to 16 bar (at 20°C) for transport of fluids for example irrigation, industry and swimmingpool installations. PVC solvent / threaded fittings is produced according to international standards including ISO264, 727, 2536, 3460, KIWA Criteria Std. No. 54 and DIN8063, 19532, UNI EN 1452-3, AFNOR 54-029 and 54-028. Color is grey according to standards. PVC solvent / threaded fittings is joined using PVC solvent cement and PTFE tape.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Pressure Rating
Has technical drawing
| Dia. | Dia. 2 | Dia. (inch) | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|---|
16 | 20 | 3/8" | PVC ADAPTOR SOCKET F/M/F 10507204 | 10 | PVC | 0.02 | ||
16 | 20 | 1/2" | PVC ADAPTOR SOCKET F/M/F 10507205 | 10 | PVC | 0.023 | ||
16 | 20 | 3/4" | PVC ADAPTOR SOCKET F/M/F 10507206 | 10 | PVC | 0.028 | ||
16 | 20 | 1/4" | PVC ADAPTOR SOCKET F/M/F 10507203 | PVC | 0.03 | |||
20 | 25 | 3/4" | PVC ADAPTOR SOCKET F/M/F 10507215 | 10 | PVC | 0.031 | ||
20 | 25 | 1" | PVC ADAPTOR SOCKET F/M/F 10507216 | 10 | PVC | 0.044 | ||
20 | 25 | 1/2" | PVC ADAPTOR SOCKET F/M/F 10507210 | 16 | PVC | 0.016 | ||
25 | 32 | 3/4" | PVC ADAPTOR SOCKET F/M/F 10507220 | 16 | PVC | 0.026 | ||
25 | 32 | 1" | PVC ADAPTOR SOCKET F/M/F 10507225 | 10 | PVC | 0.05 | ||
25 | 32 | 1 1/4" | PVC ADAPTOR SOCKET F/M/F 10507227 | 10 | PVC | 0.073 | ||
25 | 32 | 1" | PVC ADAPTOR SOCKET F/M/F 10507224 | PVC | 0.041 | |||
25 | 32 | 1/2" | PVC ADAPTOR SOCKET F/M/F 10507218 | 10 | PVC | 0.039 | ||
32 | 40 | 1" | PVC ADAPTOR SOCKET F/M/F 10507230 | 16 | PVC | 0.068 | ||
32 | 40 | 1 1/4" | PVC ADAPTOR SOCKET F/M/F 10507232 | 10 | PVC | 0.093 | ||
32 | 40 | 1 1/2" | PVC ADAPTOR SOCKET F/M/F 10507233 | 10 | PVC | 0.099 |
