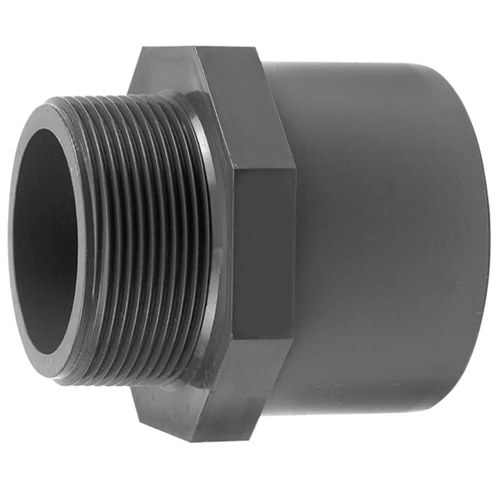

PVC ADAPTOR WITH MALE THREAD
PVC solvent / threaded fittings is suitable for installations up to 16 bar (at 20°C) for transport of fluids for example irrigation, industry and swimmingpool installations. PVC solvent / threaded fittings is produced according to international standards including ISO264, 727, 2536, 3460, KIWA Criteria Std. No. 54 and DIN8063, 19532, UNI EN 1452-3, AFNOR 54-029 and 54-028. Color is grey according to standards. PVC solvent / threaded fittings is joined using PVC solvent cement and PTFE tape.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Has technical drawing
| Dia. | Dia. (inch) | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
10 | 1/4" | PVC ADAPTOR NIPPLE 10507000 | 16 | PVC | 0.006 | ||
10 | 1/4" | PVC ADAPTOR NIPPLE F/M 10507012 | 16 | PVC | 0.0103 | ||
12 | 1/4" | PVC ADAPTOR NIPPLE 10507005 | 16 | PVC | 0.0055 | ||
12 | 3/8" | PVC ADAPTOR NIPPLE 10507010 | 16 | PVC | 0.01 | ||
16 | 3/8" | PVC ADAPTOR NIPPLE 10507015 | 16 | PVC | 0.01 | ||
16 | 1/2" | PVC ADAPTOR NIPPLE 10507020 | 16 | PVC | 0.011 | ||
20 | 1/2" | PVC ADAPTOR NIPPLE 10507030 | 16 | PVC | 0.014 | ||
20 | 3/4" | PVC ADAPTOR NIPPLE 10507035 | 16 | PVC | 0.018 | ||
20 | 3/8" | PVC ADAPTOR NIPPLE 10507025 | 16 | PVC | 0.014 | ||
25 | 3/4" | PVC ADAPTOR NIPPLE 10507045 | 16 | PVC | 0.025 | ||
25 | 1" | PVC ADAPTOR NIPPLE 10507050 | 16 | PVC | 0.028 | ||
25 | 1/2" | PVC ADAPTOR NIPPLE 10507040 | 16 | PVC | 0.025 | ||
32 | 1/2" | PVC ADAPTOR NIPPLE 10507055 | 16 | PVC | 0.0349 | ||
32 | 1 1/4" | PVC ADAPTOR NIPPLE 10507070 | 16 | PVC | 0.05 | ||
32 | 3/4" | PVC ADAPTOR NIPPLE 10507060 | 16 | PVC | 0.051 |
