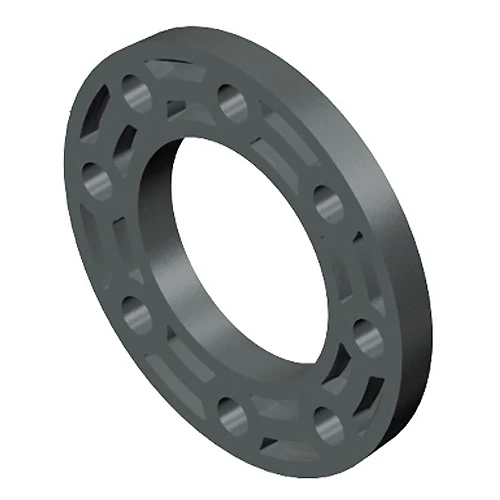

PVC BACKING FLANGE
PVC solvent fittings is suitable for installations up to 16 bar (at 20°C) for transport of fluids for example irrigation, industry and swimmingpool installations. PVC solvent fittings is produced according to international standards including ISO264, 727, 2536, 3460, KIWA Criteria Std. No. 54 and DIN8063, 19532, UNI EN 1452-3, AFNOR 54-029 and 54-028. Color is grey according to standards. PVC solvent fittings is joined using PVC solvent cement.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Has technical drawing
| Dia. | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|
20 | PVC BACKING FLANGE 10501854 | 10 | PVC | 0.07 | ||
25 | PVC BACKING FLANGE 10501856 | 10 | PVC | 0.085 | ||
32 | PVC BACKING FLANGE 10501858 | 10 | PVC | 0.125 | ||
40 | PVC BACKING FLANGE 10501860 | 10 | PVC | 0.205 | ||
50 | PVC BACKING FLANGE 10501865 | 10 | PVC | 0.231 | ||
63 | PVC BACKING FLANGE 10501870 | 10 | PVC | 0.3 | ||
75 | PVC BACKING FLANGE 10501875 | 10 | PVC | 0.41 | ||
90 | PVC BACKING FLANGE 10501880 | 10 | PVC | 0.46 | ||
110 | PVC BACKING FLANGE 10501885 | 10 | PVC | 0.54 | ||
125 | PVC BACKING FLANGE 10501890 | 10 | PVC | 0.811 | ||
125 | PVC BACKING FLANGE 10501891 | 10 | PVC | 0.825 | ||
140 | PVC BACKING FLANGE 10501895 | 10 | PVC | 0.746 | ||
160 | PVC BACKING FLANGE 10501900 | 10 | PVC | 1.05 | ||
200 | PVC BACKING FLANGE 10501905 | 10 | PVC | 1.252 | ||
225 | PVC BACKING FLANGE 10501910 | 10 | PVC | 1.396 |
