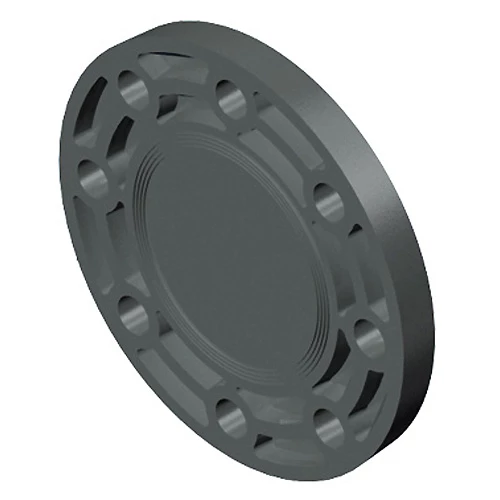

PVC BLANK FLANGE
PVC solvent fittings is suitable for installations up to 16 bar (at 20°C) for transport of fluids for example irrigation, industry and swimmingpool installations. PVC solvent fittings is produced according to international standards including ISO264, 727, 2536, 3460, KIWA Criteria Std. No. 54 and DIN8063, 19532, UNI EN 1452-3, AFNOR 54-029 and 54-028. Color is grey according to standards. PVC solvent fittings is joined using PVC solvent cement.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Pressure Rating
Has technical drawing
| Dia. | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|
20 | PVC BLANK FLANGE 10502001 | 16 | PVC | 0.07 | ||
25 | PVC BLANK FLANGE 10502003 | 16 | PVC | 0.051 | ||
32 | PVC BLANK FLANGE 10502005 | 16 | PVC | 0.143 | ||
40 | PVC BLANK FLANGE 10502010 | 16 | PVC | 0.24 | ||
50 | PVC BLANK FLANGE 10502015 | 16 | PVC | 0.286 | ||
63 | PVC BLANK FLANGE 10502020 | 16 | PVC | 0.39 | ||
75 | PVC BLANK FLANGE 10502025 | 16 | PVC | 0.49 | ||
90 | PVC BLANK FLANGE 10502030 | 16 | PVC | 0.64 | ||
110 | PVC BLANK FLANGE 10502035 | 16 | PVC | 0.786 | ||
125 | PVC BLANK FLANGE 10502040 | 16 | PVC | 0.848 | ||
140 | PVC BLANK FLANGE 10502045 | 16 | PVC | 1 | ||
160 | PVC BLANK FLANGE 10502050 | 16 | PVC | 1.743 | ||
200 | PVC BLANK FLANGE 10502055 | 10 | PVC | 2.7 | ||
225 | PVC BLANK FLANGE 10502057 | 10 | PVC | 2.745 | ||
250 | PVC BLANK FLANGE 10502058 | 10 | PVC | 3.379 |
