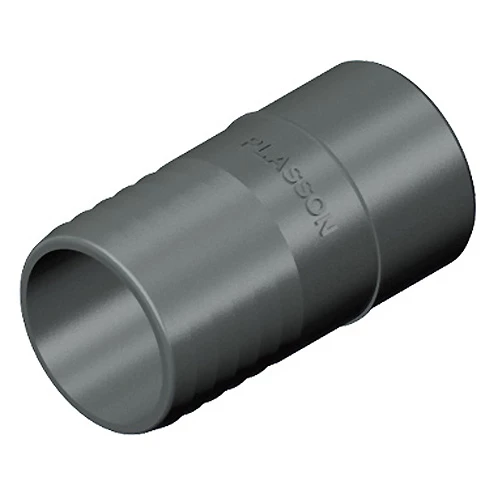

PVC HOSE NOZZLE

PVC solvent fittings is suitable for installations up to 16 bar (at 20°C) for transport of fluids for example irrigation, industry and swimmingpool installations. PVC solvent fittings is produced according to international standards including ISO264, 727, 2536, 3460, KIWA Criteria Std. No. 54 and DIN8063, 19532, UNI EN 1452-3, AFNOR 54-029 and 54-028. Color is grey according to standards. PVC solvent fittings is joined using PVC solvent cement.

Check the documents to see which products are covered by the approvals.

Diameter (mm)
Pressure Rating
Has technical drawing
Dia.Dia. 2NameDia. 3Pressure RatingSub materialWeight per pcsDiameter Span
10
PVC HOSE ADAPTOR 10501728
16PVC0.003
12
PVC HOSE ADAPTOR 10501729
16PVC0.004
16
PVC HOSE ADAPTOR 10501730
16PVC0.01
20
18
SPIGOT CONNECTION SOLVENT SOCKET 10501733
10PVC0.014
20
20
PVC HOSE ADAPTOR 10501735
16PVC0.015
25
PVC HOSE ADAPTOR 10501740
16PVC0.026
32
PVC HOSE ADAPTOR 10501745
16PVC0.033
40
PVC HOSE ADAPTOR 10501750
16PVC0.06
50
32
PVC HOSE ADAPTOR 10501757
3816PVC0.078
50
38
HOSE ADAPTOR 10501758
16PVC0.076
50
53
PVC HOSE ADAPTOR 10501756
16PVC0.114950.0 - 53.0
50
PVC HOSE ADAPTOR 10501755
16PVC0.12
63
PVC HOSE ADAPTOR 10501760
16PVC0.163
