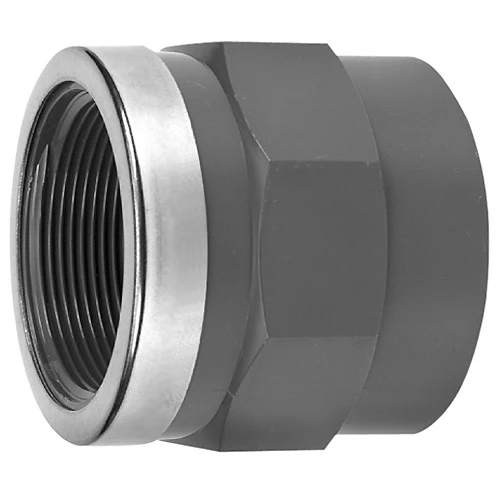

PVC MIXED SOCKET WITH REINFORCING RING
PVC solvent / threaded fittings is suitable for installations up to 16 bar (at 20°C) for transport of fluids for example irrigation, industry and swimmingpool installations. PVC solvent / threaded fittings is produced according to international standards including ISO264, 727, 2536, 3460, KIWA Criteria Std. No. 54 and DIN8063, 19532, UNI EN 1452-3, AFNOR 54-029 and 54-028. Color is grey according to standards. Reinforcing ring in stainless steel. PVC solvent / threaded fittings is joined using PVC solvent cement and PTFE tape.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
| Dia. | Dia. (inch) | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
16 | 3/8" | PVC ADAPTOR SOCKET FEMALE/FEMALE - REINFORCED 10507800 | 16 | PVC-U / AISI 430 | 0.01 | ||
20 | 1/2" | PVC ADAPTOR SOCKET FEMALE/FEMALE - REINFORCED 10507805 | 16 | PVC-U / AISI 430 | 0.018 | ||
25 | 3/4" | PVC ADAPTOR SOCKET FEMALE/FEMALE - REINFORCED 10507810 | 16 | PVC-U / AISI 430 | 0.027 | ||
32 | 1" | PVC ADAPTOR SOCKET FEMALE/FEMALE - REINFORCED 10507815 | 16 | PVC-U / AISI 430 | 0.042 | ||
40 | 1 1/4" | PVC ADAPTOR SOCKET FEMALE/FEMALE - REINFORCED 10507820 | 16 | PVC-U / AISI 430 | 0.05 | ||
50 | 1 1/2" | PVC ADAPTOR SOCKET FEMALE/FEMALE - REINFORCED 10507825 | 16 | PVC-U / AISI 430 | 0.1 | ||
63 | 2" | PVC ADAPTOR SOCKET FEMALE/FEMALE - REINFORCED 10507830 | 16 | PVC-U / AISI 430 | 0.15 | ||
75 | 2" | PVC ADAPTOR SOCKET FEMALE/FEMALE - REINFORCED 10507833 | 16 | PVC-U / AISI 430 | 0.295 | ||
75 | 2 1/2" | PVC ADAPTOR SOCKET FEMALE/FEMALE - REINFORCED 10507835 | 16 | PVC-U / AISI 430 | 0.316 | ||
90 | 3" | PVC ADAPTOR SOCKET FEMALE/FEMALE - REINFORCED 10507840 | 16 | PVC-U / AISI 430 | 0.502 | ||
110 | 4" | PVC ADAPTOR SOCKET FEMALE/FEMALE - REINFORCED 10507845 | 16 | PVC-U / AISI 430 | 0.762 |
