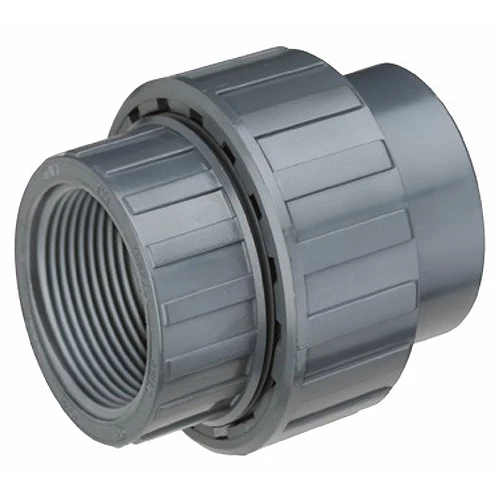

PVC MIXED UNION
PVC solvent / threaded fittings is suitable for installations up to 16 bar (at 20°C) for transport of fluids for example irrigation, industry and swimmingpool installations. PVC solvent / threaded fittings is produced according to international standards including ISO264, 727, 2536, 3460, KIWA Criteria Std. No. 54 and DIN8063, 19532, UNI EN 1452-3, AFNOR 54-029 and 54-028. Color is grey according to standards. PVC solvent /threaded fittings is joined using PVC solvent cement and PTFE tape.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Pressure Rating
| Dia. | Dia. (inch) | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
16 | 3/8" | PVC UNION 10501680 | 16 | PVC | 0.022 | ||
20 | 1/2" | PVC UNION 10501685 | 16 | PVC | 0.039 | ||
25 | 3/4" | PVC UNION 10501690 | 16 | PVC | 0.07 | ||
32 | 1" | PVC UNION 10501692 | 16 | PVC | 0.087 | ||
40 | 4" | PVC UNION 10501693 | 16 | PVC | 0.14 | ||
50 | 2" | PVC UNION 10501694 | 16 | PVC | 0.19 | ||
63 | 2" | PVC UNION 10501695 | 16 | PVC | 0.334 | ||
75 | 2" | PVC UNION 10501696 | 10 | PVC | 0.566 | ||
90 | 3" | PVC UNION 10501697 | 10 | PVC | 0.73 | ||
110 | 4" | PVC UNION 10501698 | 10 | PVC | 1.213 |
