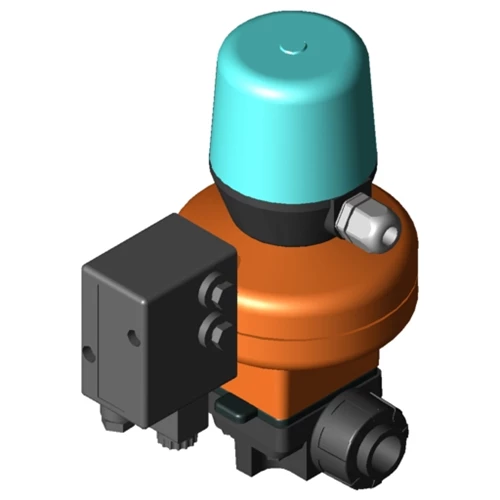

PVC STÜBBE DIAPHRAGM VALVE WITH PNEUMATIC ACTUATOR + 24 VDC 5/2 SOLENOID VALVE, DA, EPDM

PVC diaphragm valve is designed with union ends for solvent welding, ensuring a secure and leak-proof connection. It is equipped with a pneumatic actuator and a 24 V solenoid valve, making it ideal for integration into automated systems. The valve is supplied in a normally closed (NC) configuration.

The standard diaphragm material is EPDM, providing excellent resistance to a wide range of chemicals and reliable sealing performance. If required for more aggressive media, the valve can be supplied with an FPM (Viton®) diaphragm upon request.

This valve is also available with threaded (BSP/NPT) or flanged (DIN/ANSI) connections, allowing flexibility for various installation systems. The body is made of durable PVC, offering good chemical resistance and long-lasting performance in harsh environments.

With its pneumatic actuator and 24 V solenoid valve, this valve offers reliable operation across a range of applications. It can be used in environments with varying pressure and temperature conditions, making it suitable for a broad spectrum of industrial processes.

Need help?

At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!

Read more
KKKKKK (1)
Customer service
+45 63 40 41 00ordre@plast-line.dk
  • Variants
  • Specifications
Diameter (mm)
Dia.NamePressure RatingSub material
20
PVC DIAPHRAGM VALVE MV310 PNEU.DA+PILOT 10533860
10PVC
25
PVC DIAPHRAGM VALVE MV310 PNEU.DA+PILOT 10533865
10PVC
32
PVC DIAPHRAGM VALVE MV310 PNEU.DA+PILOT 10533870
10PVC
40
PVC DIAPHRAGM VALVE MV310 PNEU.DA+PILOT 10533875
10PVC
50
PVC DIAPHRAGM VALVE MV310 PNEU.DA+PILOT 10533880
10PVC
63
PVC DIAPHRAGM VALVE MV310 PNEU.DA+PILOT 10533885
10PVC
