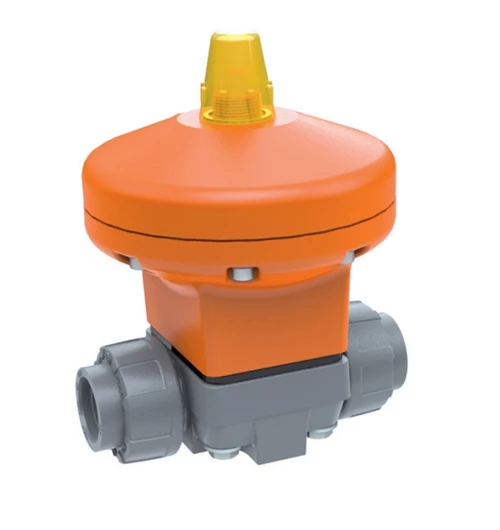

PVC STÜBBE DIAPHRAGM VALVE WITH PNEUMATIC ACTUATOR, DA, EPDM

PVC diaphragm valve is designed with union ends for solvent welding, ensuring secure and leak-proof connections. It is equipped with a pneumatic actuator and a visual position indicator, allowing for clear and reliable monitoring of the valve’s status. The standard diaphragm material is EPDM, providing excellent chemical resistance and reliable sealing performance. Upon request, the valve can be supplied with an FPM (Viton®) diaphragm for applications requiring higher chemical resistance.

The valve is designed to operate within a temperature range of approximately -10°C to +60°C when using EPDM seals.

Need help?

At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!

Read more
KKKKKK (1)
Customer service
+45 63 40 41 00ordre@plast-line.dk
  • Variants
  • Specifications
Diameter (mm)
Dia.NamePressure RatingSub materialWeight per pcs
20
PVC DIAPHRAGM VALVE MV310 PNEU.DA 10533460
10PVC1.187
25
PVC DIAPHRAGM VALVE MV310 PNEU.DA 10533465
10PVC1.245
32
PVC DIAPHRAGM VALVE MV310 PNEU.DA 10533470
10PVC2.061
40
PVC DIAPHRAGM VALVE MV310 PNEU.DA 10533475
10PVC2.257
50
PVC DIAPHRAGM VALVE MV310 PNEU.DA 10533480
10PVC3.849
63
PVC DIAPHRAGM VALVE MV310 PNEU.DA 10533485
10PVC4.223
