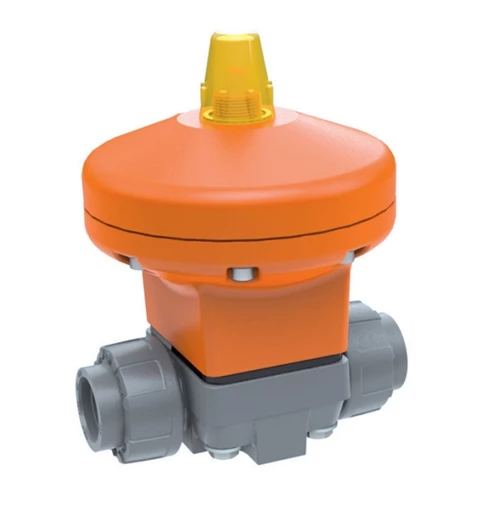

PVC STÜBBE DIAPHRAGM VALVE WITH PNEUMATIC ACTUATOR, NO, EPDM
PVC diaphragm valve is designed with union ends for solvent welding, ensuring secure and leak-proof connections. It is equipped with a pneumatic actuator and a visual position indicator, providing clear and reliable monitoring of the valve's status. The valve is supplied in a normally open (NO) configuration.
The standard diaphragm material is EPDM, offering excellent chemical resistance and reliable sealing performance. The valve is designed to operate within a temperature range of approximately -10°C to +60°C when using EPDM seals.
The valve can withstand a maximum operating pressure of up to 10 bar (depending on application and size). It is also available with threaded (BSP/NPT) or flanged (DIN/ANSI) connections, offering flexibility for various installation systems.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|
20 | PVC DIAPHRAGM VALVE MV310 PNEU.NO 10533400 | 10 | PVC | 1.268 | ||
25 | PVC DIAPHRAGM VALVE MV310 PNEU.NO 10533405 | 10 | PVC | 1.326 | ||
32 | PVC DIAPHRAGM VALVE MV310 PNEU.NO 10533410 | 10 | PVC | 2.108 | ||
40 | PVC DIAPHRAGM VALVE MV310 PNEU.NO 10533415 | 10 | PVC | 2.304 | ||
50 | PVC DIAPHRAGM VALVE MV310 PNEU.NO 10533420 | 10 | PVC | 4.131 | ||
63 | PVC DIAPHRAGM VALVE MV310 PNEU.NO 10533425 | 10 | PVC | 4.505 |
