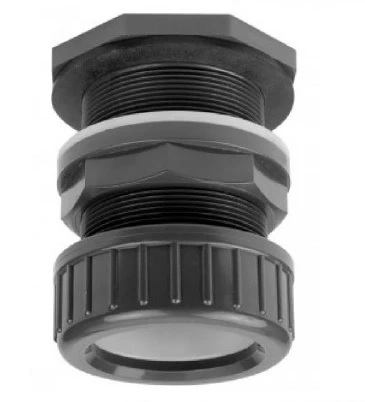

PVC TABLE DUCT WITH CLAMPING NUT
PVC glue/thread fittings can be used when installing pipe systems in PVC up to 16 bar (at 20°C) for the transport of liquids, including for example irrigation, industrial and swimming pool installations.
PVC glue/threaded fittings are produced according to applicable standards including ISO264, 727, 2536, 3460, KIWA Criteria Std. No. 54 and DIN8063, 19532, UNI EN 1452-3, AFNOR 54-029 and 54-028 as well as ISO, BS21 AND UNI339. Internal thread is cylindrical and external thread is conical.
PVC glue/thread fittings are gray in color in accordance with applicable standards.
Assembled with PVC glue and PTFE (Teflon) thread tape.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Dia. (inch) | Name | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|
20 | 3/4" | TABLE DUCT WITH CLAMPING NUT 10503999 | PVC-U / EPDM / PP | 0.044 | ||
25 | 1" | TABLE DUCT WITH CLAMPING NUT 10504000 | PVC-U / EPDM / PP | 0.072 | ||
32 | 1 1/4" | TABLE DUCT WITH CLAMPING NUT 10504001 | PVC-U / EPDM / PP | 0.11 | ||
40 | 1 3/4" | TABLE DUCT WITH CLAMPING NUT 10504002 | PVC-U / EPDM / PP | 0.226 | ||
50 | 2" | TABLE DUCT WITH CLAMPING NUT 10504003 | PVC-U / EPDM / PP | 0.25 | ||
63 | 2 1/2" | TABLE DUCT WITH CLAMPING NUT 10504004 | PVC-U / EPDM / PP | 0.426 |
