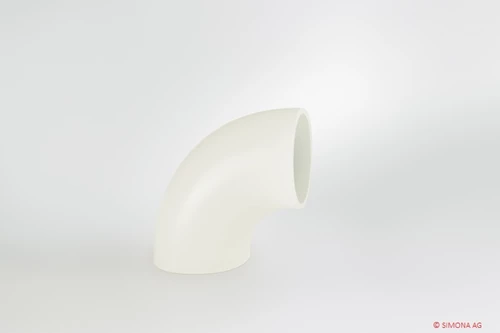

90° PVDF BEND - SHORT
PVDF (Polyvinylidene Fluoride) is an ultra-high purity homopolymer without additives. This makes it safe and suitable for use in ultra-high purity applications. PVDF also provides high mechanical strength and excellent chemical resistance for use in high temperature applications, as well as aggressive chemical solutions
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
SDR
Has technical drawing
| Dia. | Name | Angle | SDR | Material Thickness | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|---|
20 | PVDF BEND 10550250 | 90 | 21 | 1.9 | PVDF | 0.008 | ||
25 | PVDF BEND 10550255 | 90 | 21 | 1.9 | PVDF | 0.014 | ||
32 | PVDF BEND 10550260 | 90 | 21 | 2.4 | PVDF | 0.025 | ||
40 | PVDF BEND 10550265 | 90 | 21 | 2.4 | PVDF | 0.041 | ||
50 | PVDF BEND 10550270 | 90 | 21 | 3 | PVDF | 0.074 | ||
63 | PVDF BEND 10550275 | 90 | 21 | 3 | PVDF | 0.116 | ||
75 | PVDF BEND 10550280 | 90 | 21 | 3.6 | PVDF | 0.28 | ||
90 | PVDF BEND 10550285 | 90 | 33 | 4.3 | PVDF | 0.36 | ||
90 | PVDF BEND 10550290 | 90 | 21 | 4.3 | PVDF | 0.52 | ||
110 | PVDF BEND 10550295 | 90 | 33 | 5.3 | PVDF | 0.578 | ||
110 | PVDF BEND 10550300 | 90 | 21 | 5.3 | PVDF | 0.65 | ||
125 | PVDF BEND 10550305 | 90 | 33 | PVDF | 0.71 | |||
140 | PVDF BEND 10550310 | 90 | 33 | 6.7 | PVDF | 0.96 | ||
160 | PVDF BEND 10550315 | 90 | 33 | 7.7 | PVDF | 1.56 | ||
200 | PVDF BEND 10550320 | 90 | 33 | 9.6 | PVDF | 3.12 |
