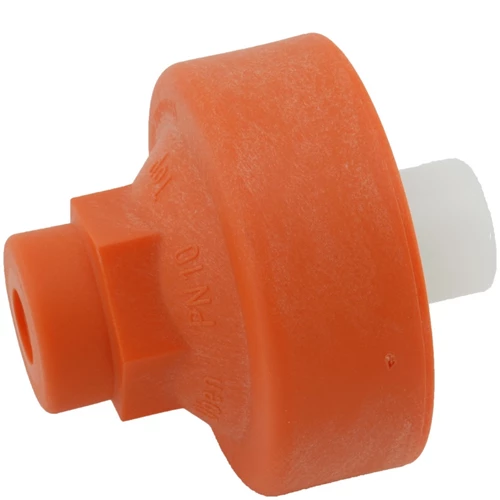

PVDF PRESSURE GAUGE - PN10
Features • Pressure measurement up to 10 bar • EPDM membrane with PTFE coating on the side in contact with the medium • Reliable protection of pressure gauges from aggressive media types • Reliable pressure transfer due to generously dimensioned membranes Convenient connection points with tips and wires Additional options on request • Free from surface disturbances • NSF certification • PFA permeation stop film • Installation of various pressure gauges
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
| Dia. | Dia. (inch) | Name | Pressure Rating | Dia. 2 (inch) | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|---|
1/4" | PRESSURE GAUGE MDM902 10551520 | 10 | 1/4" | PVDF | 0.222 | |||
1/4" | PRESSURE GAUGE MDM902 10551525 | 10 | 1/2" | PVDF | 0.182 | |||
1/2" | PRESSURE GAUGE MDM902 10551530 | 10 | 1/4" | PVDF | 0.252 | |||
1/2" | PRESSURE GAUGE MDM902 10551535 | 10 | 1/4" | PVDF | 0.191 | |||
25 | 1/4" | PRESSURE GAUGE MDM902 10551500 | 10 | PVDF | 0.195 | |||
25 | 1/2" | PRESSURE GAUGE MDM902 10551505 | 10 | PVDF | 0.19 | |||
32 | 1/4" | PRESSURE GAUGE MDM902 10551510 | 10 | PVDF | 0.208 | |||
32 | 1/2" | PRESSURE GAUGE MDM902 10551515 | 10 | PVDF | 0.182 |
