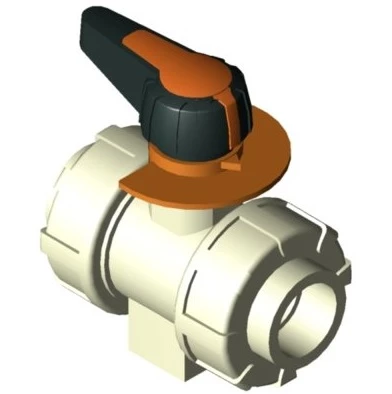

PVDF PROPORTIONAL BALL VALVE - PN16

Stübbe PROP valve in PVDF is a corrosion-resistant shut-off valve designed for reliable and efficient flow isolation in process systems where high chemical resistance and operational safety are essential. The valve is made from PVDF (polyvinylidene fluoride), a high-performance fluoropolymer known for its excellent resistance to aggressive media, low permeability, and strong mechanical properties. This makes it particularly suitable for use in chemical processing, surface treatment, and water treatment applications.

The valve operates via a manually controlled conical plug, allowing quick and secure opening or closing of the flow path. Its simple and robust design ensures minimal maintenance and long service life, even under demanding conditions.

Stübbe PVDF plug valves typically offer a temperature range of -20 °C to +120 °C and are pressure rated up to PN10 at 20 °C, depending on size and installation method. The valve is available with various connection types, including socket ends for fusion welding, and can be configured with sealing materials such as FKM or EPDM to match specific media requirements.

With its durable construction, chemical resistance, and straightforward operation, the Stübbe PVDF PROP valve is a dependable solution for isolating flow in harsh and chemically aggressive environments.
