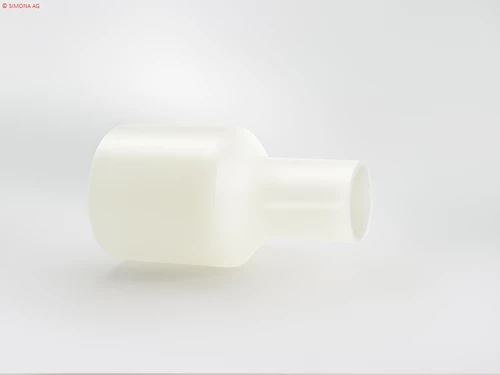

PVDF REDUCER M/M - LONG
PVDF (Polyvinylidene Fluoride) is an ultra-high purity homopolymer without additives. This makes it safe and suitable for use in ultra-high purity applications. PVDF also provides high mechanical strength and excellent chemical resistance for use in high temperature applications, as well as aggressive chemical solutions
Check the documents to see which products are covered by the approvals.
Diameter (mm)
SDR
| Dia. | Dia. 2 | Name | SDR | Material Thickness | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|---|
25 | 20 | PVDF REDUCERLONG 10550850 | 21 | 1.9 | PVDF | 0.015 | ||
32 | 20 | PVDF REDUCERLONG 10550855 | 21 | 1.9 | PVDF | 0.015 | ||
32 | 25 | PVDF REDUCERLONG 10550860 | 21 | 1.9 | PVDF | 0.016 | ||
40 | 20 | PVDF REDUCERLONG 10550865 | 21 | 1.9 | PVDF | 0.02 | ||
40 | 32 | PVDF REDUCERLONG 10550875 | 21 | 2.4 | PVDF | 0.026 | ||
50 | 25 | PVDF REDUCERLONG 10550880 | 21 | 3 | PVDF | 0.031 | ||
50 | 32 | PVDF REDUCERLONG 10550885 | 21 | 3 | PVDF | 0.048 | ||
50 | 40 | PVDF REDUCERLONG 10550890 | 21 | 3 | PVDF | 0.04 | ||
63 | 32 | PVDF REDUCERLONG 10550895 | 21 | 3 | PVDF | 0.064 | ||
63 | 50 | PVDF REDUCERLONG 10550900 | 21 | 3 | PVDF | 0.06 | ||
75 | 50 | PVDF REDUCERLONG 10550905 | 21 | 3.6 | PVDF | 0.096 | ||
90 | 63 | PVDF REDUCERLONG 10550908 | 21 | 4.3 | PVDF | 0.13 | ||
90 | 63 | PVDF REDUCERLONG 10550910 | 21 | 4.3 | PVDF | 0.13 | ||
90 | 75 | PVDF REDUCERLONG 10550915 | 21 | 4.3 | PVDF | 0.18 | ||
110 | 63 | PVDF REDUCERLONG 10550920 | 21 | 5.3 | PVDF | 0.213 |
