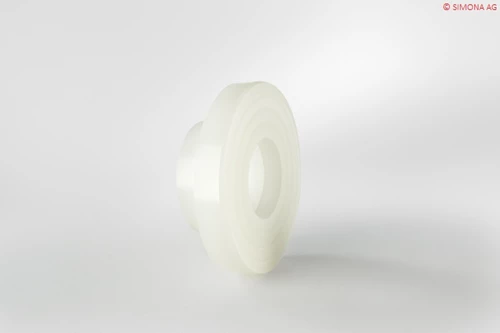

PVDF STUB FLANGE - SHORT ISO/DIN
PVDF (Polyvinylidene Fluoride) is an ultra-high purity homopolymer without additives. This makes it safe and suitable for use in ultra-high purity applications. PVDF also provides high mechanical strength and excellent chemical resistance for use in high temperature applications, as well as aggressive chemical solutions
Check the documents to see which products are covered by the approvals.
Diameter (mm)
SDR
| Dia. | Name | SDR | Material Thickness | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
20 | PVDF STUB FLANGE ISO/DIN 10550350 | 21 | 1.9 | PVDF | |||
25 | PVDF STUB FLANGE ISO/DIN 10550355 | 21 | 1.9 | PVDF | |||
32 | PVDF STUB FLANGE ISO/DIN 10550360 | 21 | 2.4 | PVDF | 0.072 | ||
40 | PVDF STUB FLANGE ISO/DIN 10550365 | 21 | 2.4 | PVDF | |||
50 | PVDF STUB FLANGE ISO/DIN 10550370 | 21 | 3 | PVDF | |||
63 | PVDF STUB FLANGE ISO/DIN 10550375 | 21 | 3 | PVDF | 0.187 | ||
75 | PVDF STUB FLANGE ISO/DIN 10550380 | 21 | 3.6 | PVDF | |||
90 | PVDF STUB FLANGE ISO/DIN 10550385 | 33 | 4.3 | PVDF | 0.37 | ||
90 | PVDF STUB FLANGE ISO/DIN 10550390 | 21 | 4.3 | PVDF | |||
110 | PVDF STUB FLANGE ISO/DIN 10550395 | 33 | 5.3 | PVDF | |||
110 | PVDF STUB FLANGE ISO/DIN 10550400 | 21 | 5.3 | PVDF | |||
125 | PVDF STUB FLANGE ISO/DIN 10550405 | 33 | PVDF | ||||
140 | PVDF STUB FLANGE ISO/DIN 10550410 | 33 | 6.7 | PVDF | |||
160 | PVDF STUB FLANGE ISO/DIN 10550415 | 33 | 7.7 | PVDF | |||
200 | PVDF STUB FLANGE ISO/DIN 10550420 | 33 | 9.6 | PVDF |
