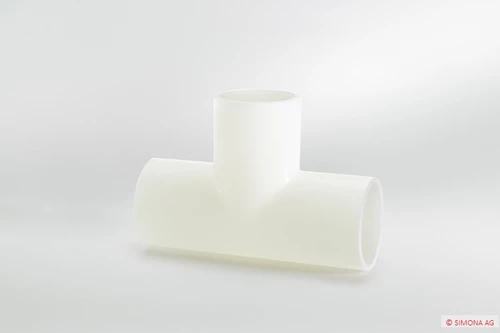

PVDF TEE - SHORT
PVDF (Polyvinylidene Fluoride) is an ultra-high purity homopolymer without additives. This makes it safe and suitable for use in ultra-high purity applications. PVDF also provides high mechanical strength and excellent chemical resistance for use in high temperature applications, as well as aggressive chemical solutions
Check the documents to see which products are covered by the approvals.
Diameter (mm)
SDR
| Dia. | Name | SDR | Material Thickness | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
20 | PVDF TEE 10550550 | 21 | 1.9 | PVDF | 0.021 | ||
25 | PVDF TEE 10550555 | 21 | 1.9 | PVDF | 0.029 | ||
32 | PVDF TEE 10550560 | 21 | 2.4 | PVDF | 0.057 | ||
40 | PVDF TEE 10550565 | 21 | 2.4 | PVDF | 0.088 | ||
50 | PVDF TEE 10550570 | 21 | 3 | PVDF | 0.155 | ||
63 | PVDF TEE 10550575 | 21 | 3 | PVDF | 0.275 | ||
75 | PVDF TEE 10550580 | 21 | 3.6 | PVDF | 0.37 | ||
90 | PVDF TEE 10550585 | 33 | 4.3 | PVDF | 0.397 | ||
90 | PVDF TEE 10550590 | 21 | 4.3 | PVDF | 0.66 | ||
110 | PVDF TEE 10550595 | 33 | 3.4 | PVDF | 0.714 | ||
110 | PVDF TEE 10550600 | 21 | 5.3 | PVDF | 1.21 | ||
125 | PVDF TEE 10550605 | 33 | 3.9 | PVDF | 1.28 | ||
140 | PVDF TEE 10550610 | 33 | 4.3 | PVDF | 1.78 | ||
160 | PVDF TEE 10550615 | 33 | 4.9 | PVDF | 2.57 | ||
200 | PVDF TEE 10550620 | 33 | 6.2 | PVDF | 4.81 |
