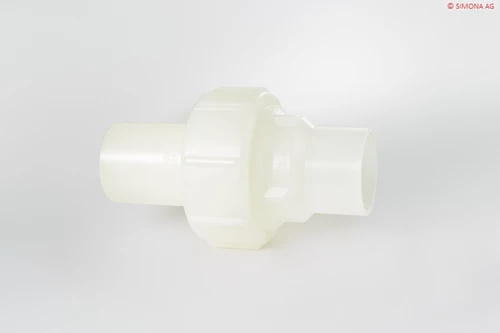

PVDF UNION, FPM F/F
PVDF (Polyvinylidene Fluoride) is an ultra-high purity homopolymer without additives. This makes it safe and suitable for use in ultra-high purity applications. PVDF also provides high mechanical strength and excellent chemical resistance for use in high temperature applications, as well as aggressive chemical solutions
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Has technical drawing
| Dia. | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|
20 | PVDF UNION F/F - FPM 10551000 | 16 | PVDF | 0.058 | ||
25 | PVDF UNION F/F - FPM 10551005 | 16 | PVDF | 0.105 | ||
32 | PVDF UNION F/F - FPM 10551010 | 16 | PVDF | 0.12 | ||
40 | PVDF UNION F/F - FPM 10551015 | 16 | PVDF | 0.2 | ||
50 | PVDF UNION F/F - FPM 10551020 | 16 | PVDF | 0.29 | ||
63 | PVDF UNION F/F - FPM 10551025 | 16 | PVDF | 0.4 |
