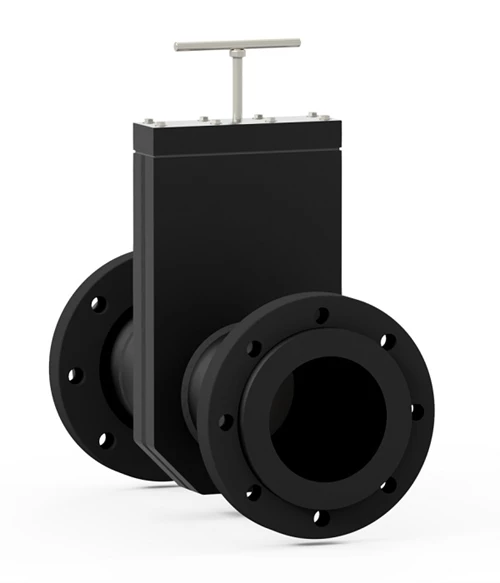

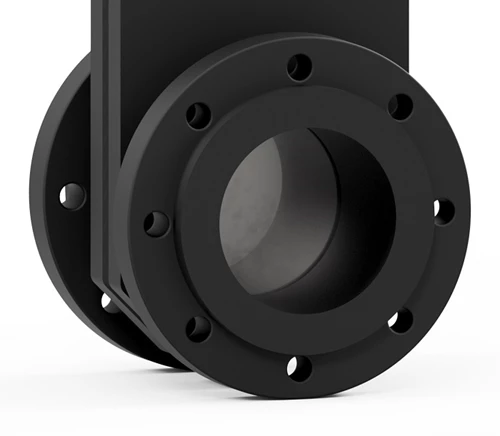

PL-GATEVALVE-P WITH POSITION LOCK AND DOUBLE DIN-FLANGE

PL-GATEVALVE-P is a unique knife valve that can be used for water/liquids without solid material. The valve is full flow. This means that the valve has a wide range of applications. The valve is mainly used for fish farming, where corrosion-free materials are required.

This model is leak -free from both directions.



The valve has a position lock. This makes it possible to lock the knife in any given position.



All internal steel components are made of DUPLEX for enhanced corrosion resistance. Recommended for use in saline environments above 18 °C.



This particular model has a double sided DIN flange for easy connection.

Check the documents to see which products are covered by the approvals.

Diameter (mm)
Dia.NameWeight per pcs
110
PL-GATEVALVE-P - DUPLEX - WITH POSITION LOCK - 2 BAR - DOUBLE DIN-FLANGE 71027810
9.26
125
PL-GATEVALVE-P - DUPLEX - WITH POSITION LOCK - 2 BAR - DOUBLE DIN-FLANGE 71027820
10.195
160
PL-GATEVALVE-P - DUPLEX - WITH POSITION LOCK - 2 BAR - DOUBLE DIN-FLANGE 71027830
17.24
200
PL-GATEVALVE-P - DUPLEX - WITH POSITION LOCK - 1 BAR - DOUBLE DIN-FLANGE 71027840
22.34
250
PL-GATEVALVE-P - DUPLEX - WITH POSITION LOCK - 1 BAR - DOUBLE DIN-FLANGE 71027850
33.84
315
PL-GATEVALVE-P - DUPLEX - WITH POSITION LOCK - 1 BAR - DOUBLE DIN-FLANGE 71027860
51.09
355
PL-GATEVALVE-P - DUPLEX - WITH POSITION LOCK - 1 BAR - DOUBLE DIN-FLANGE 71027870
71.44
400
PL-GATEVALVE-P - DUPLEX - WITH POSITION LOCK - 1 BAR - DOUBLE DIN-FLANGE 71027880
100.38
