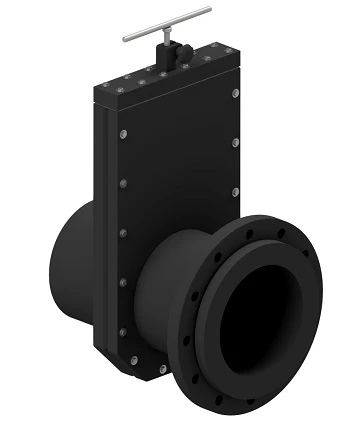

PL-GATEVALVE-P WITH POSITION LOCK AND SINGLE DIN-FLANGE

PL-GATEVALVE-P is a unique knife valve that can be used for water/liquids without solid material. The valve is full flow. This means that the valve has a wide range of applications. The valve is mainly used for fish farming, where corrosion-free materials are required.

This model is leak -free from both directions.



The valve has a position lock. This makes it possible to lock the knife in any given position.



All internal steel components are made of DUPLEX for enhanced corrosion resistance. Recommended for use in saline environments above 18 °C.



This particular model has a single sided DIN flange for easy connection.

Check the documents to see which products are covered by the approvals.

Diameter (mm)
Dia.NameWeight per pcs
110
PL-GATEVALVE-P - DUPLEX - WITH POSITION LOCK - 2 BAR - ENSIDET DIN-FLANGE 71028010
7.07
125
PL-GATEVALVE-P - DUPLEX - WITH POSITION LOCK - 2 BAR - ENSIDET DIN-FLANGE 71028020
8.035
160
PL-GATEVALVE-P - DUPLEX - WITH POSITION LOCK - 2 BAR - ENSIDET DIN-FLANGE 71028030
12.455
200
PL-GATEVALVE-P - DUPLEX - WITH POSITION LOCK - 1 BAR - ENSIDET DIN-FLANGE 71028040
16.31
250
PL-GATEVALVE-P - DUPLEX - WITH POSITION LOCK - 1 BAR - ENSIDET DIN-FLANGE 71028050
24.61
315
PL-GATEVALVE-P - DUPLEX - WITH POSITION LOCK - 1 BAR - ENSIDET DIN-FLANGE 71028060
37.79
355
PL-GATEVALVE-P - DUPLEX - WITH POSITION LOCK - 1 BAR - ENSIDET DIN-FLANGE 71028070
50.56
400
PL-GATEVALVE-P - DUPLEX - WITH POSITION LOCK - 1 BAR - ENSIDET DIN-FLANGE 71028080
69.33
