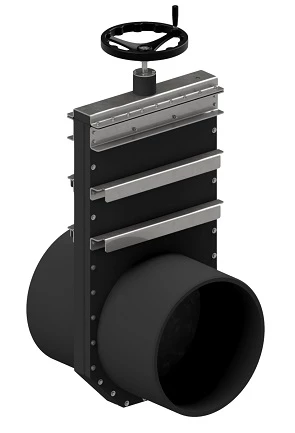

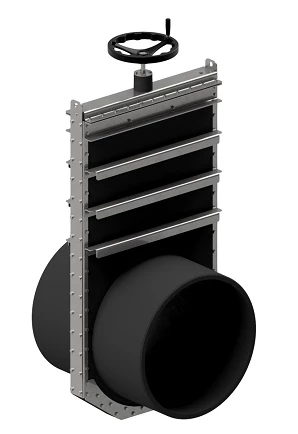

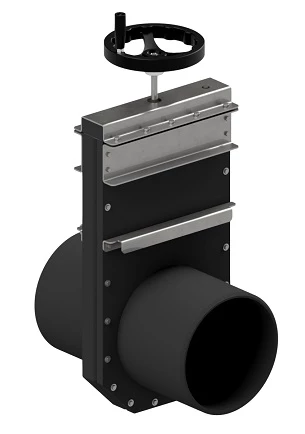

PL-GATEVALVE-SPINDLE
PL-GATEVALVE-S is a unique gate valve which can be used for water/liquids without solid material. In addition to a smooth passage, the valve is leak-free against water pressure from both directions.
It is produces with a non-rising spindle, which enables knife can be easily adjusted and fixed manually.
The valve is full flow. This means that the valve has a wide range of applications. The valve is especially used in fish breeding facilities, where corrosion-free materials are required.
Check the documents to see which products are covered by the approvals.
Diameter (mm)
Has technical drawing
| Dia. | Name | Weight per pcs | ||
|---|---|---|---|---|
110 | PL-GATEVALVE-SPINDLE - AISI316 - WITH HAND WHEEL 72026112 | 11.1 | ||
125 | PL-GATEVALVE-SPINDLE - AISI316 - WITH HAND WHEEL 72026127 | 12.4 | ||
160 | PL-GATEVALVE-SPINDLE - AISI316 - WITH HAND WHEEL 72026162 | 17.5 | ||
200 | PL-GATEVALVE-SPINDLE - AISI316 - WITH HAND WHEEL 72026202 | 22.5 | ||
225 | ø225 PL-GATEVALVE-SPINDLE - AISI316 - WITH HAND WHEEL 72026225 | 26.5 | ||
250 | PL-GATEVALVE-SPINDLE - AISI316 - WITH HAND WHEEL 72026252 | 31.6 | ||
280 | PL-GATEVALVE-SPINDLE - AISI316 - WITH HAND WHEEL 72026282 | 38.6 | ||
315 | PL-GATEVALVE-SPINDLE - AISI316 - WITH HAND WHEEL 72026317 | 41.6 | ||
355 | PL-GATEVALVE-SPINDLE - AISI316 - WITH HAND WHEEL 72026357 | 45.6 | ||
400 | PL-GATEVALVE-SPINDLE - AISI316 - WITH HAND WHEEL 72026402 | 59.7 | ||
450 | PL-GATEVALVE-SPINDLE - AISI316 - WITH HAND WHEEL 72026452 | 86.7 | ||
500 | PL-GATEVALVE-SPINDLE - AISI316 - WITH HAND WHEEL 72026502 | 100 | ||
560 | PL-GATEVALVE-SPINDLE - AISI316 - WITH HAND WHEEL 72026562 | |||
630 | PL-GATEVALVE-SPINDLE - AISI316 - WITH HAND WHEEL 72026632 | 167 | ||
710 | PL-GATEVALVE-SPINDLE - AISI316 - WITH HAND WHEEL 72026712 | 231 |
