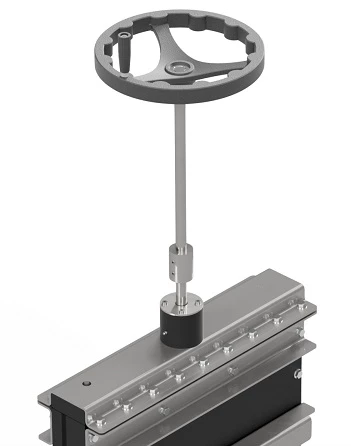

SPINDLE EXTENSION

If the valve is placed in the ground or in a well, it is possible to extend the spindle to improve operating conditions. Provide us with the valve size and the desired length of the spindle. If a spindle extension of more than 1 meter is required, the ex-tension needs to be mounted with a wall mounts to stabilize it. Customized wall mount are offered on request. If there is a need for a spindle extension with a large span, we are able to offer dimensioning of this. Available for valves in both AiSi316L or Duplex with or without protective tubes. Handwheels are to be bought separately.

Check the documents to see which products are covered by the approvals.

Diameter (mm)
Dia.NameWeight per pcs
16
Ø1,5 METER SPINDLE EXTENSION (FOR PL-GATEVALVE-S 110-355 MM) 79000810
2.05
16
Ø2,0 METER SPINDLE EXTENSION (FOR PL-GATEVALVE-S 110-355 MM) 79000815
3.6
16
Ø1,0 METER SPINDLE EXTENSION (FOR PL-GATEVALVE-S 110-355 MM) 79000805
1.09
20
Ø1,0 METER SPINDLE EXTENSION (FOR PL-GATEVALVE-S 500 MM) 79000820
2.096
20
Ø2,0 METER SPINDLE EXTENSION (FOR PL-GATEVALVE-S 500 MM) 79000830
5.5
20
Ø1,5 METER SPINDLE EXTENSION (FOR PL-GATEVALVE-S 500 MM) 79000825
4.2
25
Ø1,0 METER SPINDLE EXTENSION (FOR PL-GATEVALVE-S 560-900 MM) 79000835
3.095
25
Ø1,5 METER SPINDLE EXTENSION (FOR PL-GATEVALVE-S 560-900 MM) 79000840
5.092
25
Ø2,0 METER SPINDLE EXTENSION (FOR PL-GATEVALVE-S 560-900 MM) 79000845
7.88
30
Ø1,5 METER SPINDLE EXTENSION (FOR PL-GATEVALVE-S 1000-1200 MM) 79000855
8.5
30
Ø2,0 METER SPINDLE EXTENSION (FOR PL-GATEVALVE-S 1000-1200 MM) 79000860
11.4
30
Ø1,0 METER SPINDLE EXTENSION (FOR PL-GATEVALVE-S 1000-1200 MM) 79000850
5.7
ADDITIONAL 0,5M EXTENSION OF Ø20 MM 79000885
1.3
ADDITIONAL 0,5M EXTENSION OF Ø25 MM 79000890
2
ADDITIONAL 0,5M EXTENSION OF Ø16 MM 79000880
0.9
