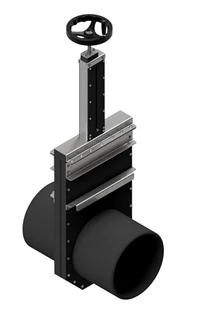

PL-GATEVALVE-SPINDLE - DUPLEX
PL-GATEVALVE-S is a unique gate valve which can be used for water/liquids without solid material. In addition to a smooth passage, the valve is leak-free against water pressure from both directions.
It is produces with a non-rising spindle, which enables knife can be easily adjusted and fixed manually.
The valve is full flow. This means that the valve has a wide range of applications. The valve is especially used in fish breeding facilities, where corrosion-free materials are required.
With the external spindle console, the wearing parts have been moved out of the valve, where they are continuously maintained and serviced. This significantly increases the service life of the valve. Furthermore, the wear parts can be serviced while there is full water pressure in the valve housing.

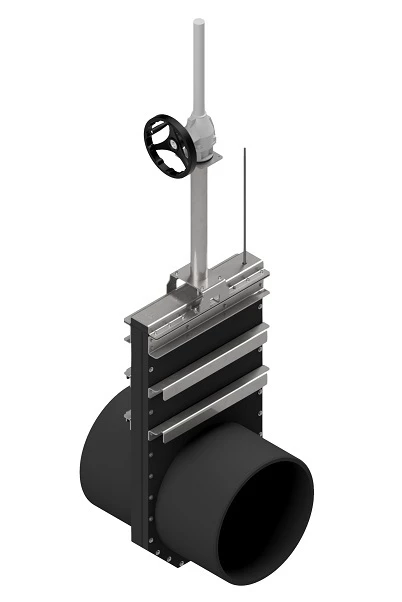

The valve from 630 to 1200 mm is delivered as standard with an AUMA gear.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Name | ||
|---|---|---|---|
110 | PL-GATEVALVE-SPINDLE- DUPLEX - WITH HAND WHEEL 72026113 | ||
125 | PL-GATEVALVE-SPINDLE - DUPLEX - WITH HAND WHEEL 72026128 | ||
160 | PL-GATEVALVE-SPINDLE - DUPLEX - WITH HAND WHEEL 72026163 | ||
200 | PL-GATEVALVE-SPINDLE - DUPLEX - WITH HAND WHEEL 72026203 | ||
250 | PL-GATEVALVE-SPINDLE - DUPLEX - WITH HAND WHEEL 72026253 | ||
280 | PL-GATEVALVE-SPINDLE - DUPLEX - WITH HAND WHEEL 72026283 | ||
315 | PL-GATEVALVE-SPINDLE - DUPLEX - WITH HAND WHEEL 72026318 | ||
355 | PL-GATEVALVE-SPINDLE - DUPLEX - WITH HAND WHEEL 72026358 | ||
400 | PL-GATEVALVE-SPINDLE - DUPLEX - WITH HAND WHEEL 72026403 | ||
450 | PL-GATEVALVE-SPINDLE - DUPLEX - WITH HAND WHEEL 72026453 | ||
500 | PL-GATEVALVE-SPINDLE - DUPLEX - WITH HAND WHEEL 72026503 | ||
560 | PL-GATEVALVE-SPINDLE - DUPLEX - WITH HAND WHEEL 72026563 | ||
630 | PL-GATEVALVE-SPINDLE - DUPLEX - WITH HAND WHEEL 72026633 | ||
710 | PL-GATEVALVE-SPINDLE - DUPLEX - WITH HAND WHEEL 72026713 | ||
800 | PL-GATEVALVE-SPINDLE - DUPLEX - WITH HAND WHEEL 72026803 |
