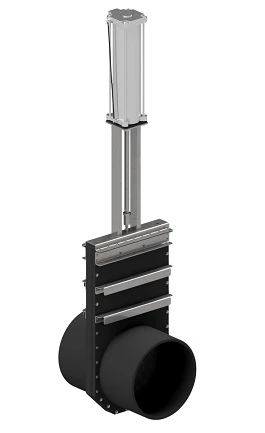

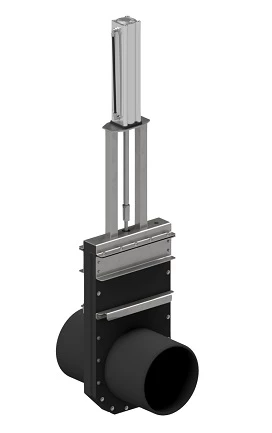

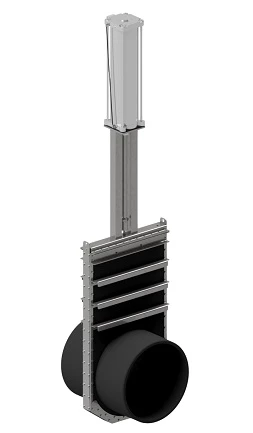

PL-GATEVALVE-SPINDLE - WITH PNEUMATIC CYLINDER

PL-GATEVALVE-S is a unique knife valve, which can be used for water/fluids without solid materials. Besides a smooth inner surface, the valve is designed, so it is leak free from both sides.

The valve has full bore. This makes the valve suitable for a wide range of applications. The valve is made particularly for use in fish farming facilities, where there is a requirement for corrosion-free materials. The valve is delivered with pneumatic cylinder after customer preference. Inform us the water pressure, which the valve should be able to open and close at, for dimensioning of the pneumatic cylinder. The pneumatic cylinder is offered in these different types of corrosion protected versions: - Standard pneumatic cylinder with hard chromed piston rod and cylinder house in aluminium. - Pneumatic cylinder in high corrosion protection version, where external bolts and piston rod is in AiSi316, and the cylinder house is hard anodized and coated on the ends. - Pneumatic cylinder completley in AiSi316. Reed contacts can be added, to signal when the knife valve has reached it’s end position.
