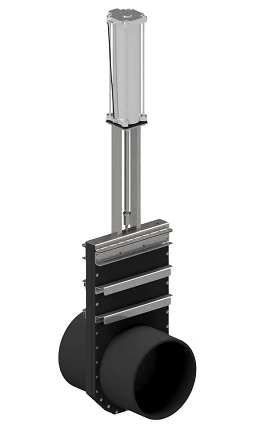

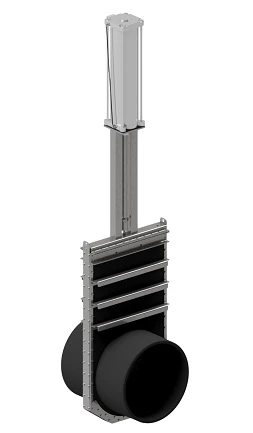

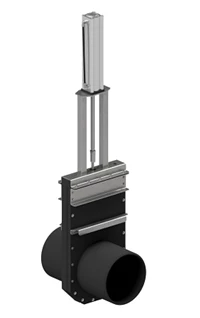

PL-GATEVALVE-SPINDLE - WITH PNEUMATIC CYLINDER AND 4-20mA CONTROL
PL-GATEVALVE-S is a unique gate valve which can be used for water/liquids without solid material. In addition to a smooth passage, the valve is leak-free against water pressure from both directions.
The valve is full flow. This means that the valve has a wide range of applications. The valve is especially used in fish breeding facilities, where corrosion-free materials are required.
The valve is supplied with an air actuator. Please indicate the water pressure at which the valve must be able to open and close for dimensioning the air cylinder.
This air cylinder is in a high corrosion protection version, where the piston rod and external bolts are AISI316, and the cylinder housing is hard anodized with coating on the ends. The valve can be supplied with an air cylinder according to customer request
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Name | ||
|---|---|---|---|
110 | PL-GATEVALVE-SPINDLE - AISI316 - WITH PNEUMATIC CYLINDER WITH 4-20mA CONTROL (MAX 11 mWC2O) 72029000 | ||
110 | PL-GATEVALVE-SPINDLE - AISI316 - WITH PNEUMATIC CYLINDER WITH 4-20mA CONTROL (MAX 27 mWC2O) 72029005 | ||
125 | PL-GATEVALVE-SPINDLE - AISI316 - WITH PNEUMATIC CYLINDER WITH 4-20mA CONTROL (MAX 13 mWC2O) 72029010 | ||
125 | PL-GATEVALVE-SPINDLE - AISI316 - WITH PNEUMATIC CYLINDER WITH 4-20mA CONTROL (MAX 21 mWC2O) 72029015 | ||
160 | PL-GATEVALVE-SPINDLE - AISI316 - WITH PNEUMATIC CYLINDER WITH 4-20mA CONTROL (MAX 12 mWC2O) 72029020 | ||
160 | PL-GATEVALVE-SPINDLE - AISI316 - WITH PNEUMATIC CYLINDER WITH 4-20mA CONTROL (MAX 22 mWC2O) 72029025 | ||
200 | PL-GATEVALVE-SPINDLE - AISI316 - WITH PNEUMATIC CYLINDER WITH 4-20mA CONTROL (MAX 14 mWC2O) 72029030 | ||
200 | PL-GATEVALVE-SPINDLE - AISI316 - WITH PNEUMATIC CYLINDER WITH 4-20mA CONTROL (MAX 22 mWC2O) 72029035 | ||
250 | PL-GATEVALVE-SPINDLE - AISI316 - WITH PNEUMATIC CYLINDER WITH 4-20mA CONTROL (MAXH2O) 72029040 | ||
250 | PL-GATEVALVE-SPINDLE - AISI316 - WITH PNEUMATIC CYLINDER WITH 4-20mA CONTROL (MAX 14 mWC2O) 72029045 | ||
250 | PL-GATEVALVE-SPINDLE - AISI316 - WITH PNEUMATIC CYLINDER WITH 4-20mA CONTROL (MAX 23 mWC2O) 72029050 | ||
315 | PL-GATEVALVE-SPINDLE - AISI316 - WITH PNEUMATIC CYLINDER WITH 4-20mA CONTROL (MAX mWC2O) 72029055 | ||
315 | PL-GATEVALVE-SPINDLE - AISI316 - WITH PNEUMATIC CYLINDER WITH 4-20mA CONTROL (MAX 14 mWC2O) 72029060 | ||
315 | PL-GATEVALVE-SPINDLE - AISI316 - WITH PNEUMATIC CYLINDER WITH 4-20mA CONTROL (MAX 23 mWC2O) 72029065 | ||
355 | PL-GATEVALVE-SPINDLE - AISI316 - WITH PNEUMATIC CYLINDER WITH 4-20mA CONTROL (MAX 7 mWC2O) 72029070 |
