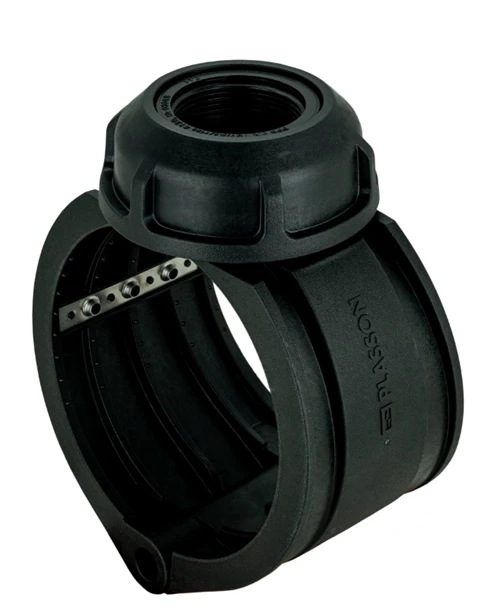

PLASSADDLE TAPPER FEMALE THREAD
PLASSADDLE is PLASSON’s revolutionary, newly developed mechanical saddle, setting new standards for efficiency and ease of use. Featuring an innovative and fast tightening mechanism, installation requires neither bolts nor tools, saving time and making the process simple and secure. The product is made entirely of strong, durable, and non-corrosive plastic components, with no metal parts, ensuring long service life and high resistance to aggressive environments. PLASSADDLE combines reliability with innovation and is yet another example of PLASSON’s commitment to delivering advanced solutions for modern piping systems.
The technical specifications make PLASSADDLE suitable for use on both PE and PVC pipelines with diameters ranging from 63 to 200 mm. It is designed to withstand a working pressure of up to PN 16 and is available with both female "Rp" and male "R" ISO 7-1 threads, ensuring compatibility with a wide range of installation requirements and fittings.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Dia. (inch) | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
63 | 1/2" | PLASSADDLE TAPPER FEMALE THREAD 10461500 | 16 | PE100 | 0.383 | ||
63 | 3/4" | PLASSADDLE TAPPER FEMALE THREAD 10461505 | 16 | PE100 | |||
63 | 1" | PLASSADDLE TAPPER FEMALE THREAD 10461510 | 16 | PE100 | |||
63 | 1/4" | PLASSADDLE TAPPER FEMALE THREAD 10461515 | 16 | PE100 | 0.39 | ||
63 | 1/2" | PLASSADDLE TAPPER FEMALE THREAD 10461520 | 16 | PE100 | 0.37 | ||
90 | 1/2" | PLASSADDLE TAPPER FEMALE THREAD 10461550 | 16 | PE100 | 0.455 | ||
90 | 3/4" | PLASSADDLE TAPPER FEMALE THREAD 10461555 | 16 | PE100 | 0.458 | ||
90 | 1" | PLASSADDLE TAPPER FEMALE THREAD 10461560 | 16 | PE100 | |||
90 | 1/4" | PLASSADDLE TAPPER FEMALE THREAD 10461565 | 16 | PE100 | 0.463 | ||
90 | 1/2" | PLASSADDLE TAPPER FEMALE THREAD 10461570 | 16 | PE100 | 0.45 | ||
110 | 1/2" | PLASSADDLE TAPPER FEMALE THREAD 10461575 | 16 | PE100 | |||
110 | 3/4" | PLASSADDLE TAPPER FEMALE THREAD 10461580 | 16 | PE100 | |||
110 | 1" | PLASSADDLE TAPPER FEMALE THREAD 10461585 | 16 | PE100 | |||
110 | 1 1/4" | PLASSADDLE TAPPER FEMALE THREAD 10461590 | 16 | PE100 | 0.51 | ||
110 | 1 1/2" | PLASSADDLE TAPPER FEMALE THREAD 10461595 | 16 | PE100 | 0.493 |
