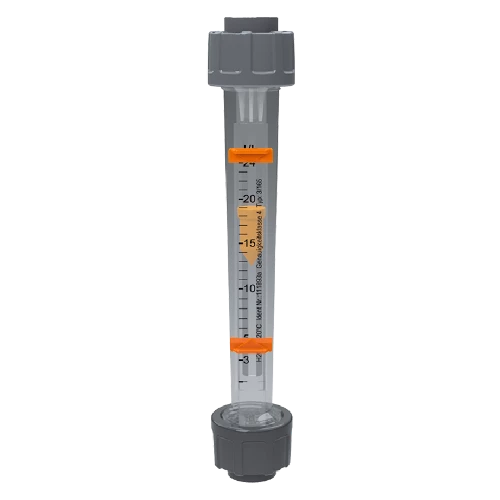

PVC FLOWMETER
PA Transparent flow meter PVDF cone Seal in EPDM, can be supplied with FPM Measuring range 3 to 50,000 L / T Suitable for a wide range of applications for gaseous types of media, water, lye, acids Direct visualization of the measured values Accuracy class 4 Integrated mounting rail for flow data sensors Additional options on request Flow data sensor Special scales "
Check the documents to see which products are covered by the approvals.
Diameter (mm)
| Dia. | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|
16 | PVC FLOWMETER DFM 165 BASIC 3-24 L 10536505 | 10 | PVC | 0.106 | ||
16 | PVC FLOWMETER DFM 165 BASIC 5-60 L 10536515 | 10 | PVC | 0.104 | ||
16 | PVC FLOWMETER DFM 165 BASIC 10-100 L 10536525 | 10 | PVC | 0.102 | ||
16 | PVC FLOWMETER DFM 165 BASIC 25-250 L 10536535 | 10 | PVC | 0.098 | ||
20 | PVC FLOWMETER DFM 170 BASIC 5-50 L 10536545 | 10 | PVC | 0.155 | ||
20 | PVC FLOWMETER DFM 170 BASIC 15-150 L 10536555 | 10 | PVC | 0.151 | ||
20 | PVC FLOWMETER DFM 170 BASIC 40-400 L 10536575 | 10 | PVC | 0.143 | ||
20 | PVC FLOWMETER DFM 170 BASIC 25-250 L 10536565 | 10 | PVC | 0.149 | ||
25 | PVC FLOWMETER DFM 185 BASIC 15-150 L 10536585 | 10 | PVC | 0.237 | ||
25 | PVC FLOWMETER DFM 185 BASIC 40-400 L 10536595 | 10 | PVC | 0.231 | ||
25 | PVC FLOWMETER DFM 185 BASIC 60-600 L 10536605 | 10 | PVC | 0.225 | ||
25 | PVC FLOWMETER DFM 185 BASIC 100-1000 L 10536615 | 10 | PVC | 0.217 | ||
32 | PVC FLOWMETER DFM 350 BASIC 60-600 L 10536625 | 10 | PVC | 0.524 | ||
32 | PVC FLOWMETER DFM 200 BASIC 100-1000 L 10536633 | 10 | PVC | 0.286 | ||
32 | PVC FLOWMETER DFM 350 BASIC 100-1000 L 10536635 | 10 | PVC | 0.512 |
