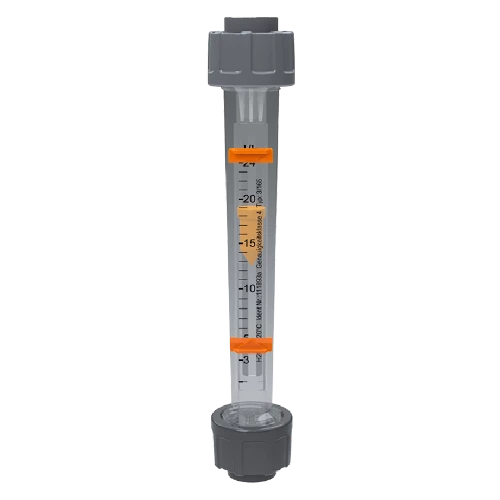

PVC FLOWMETER WITH MAGNETIC FLOAT
PA Transparent flow meter Magnetic PVDF cone Seal in EPDM, can be supplied with FPM Measuring range 3 to 50,000 L / T Suitable for a wide range of applications for gaseous types of media, water, lye, acids Direct visualization of the measured values Accuracy class 4 Integrated mounting rail for flow data sensors Additional options on request Flow data sensor Special scales
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
| Dia. | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|
16 | PVC FLOWMETER DFM 165 BASIC 3-24 L WITH MAGNETIC FLOAT 10536510 | 10 | PVC | 0.106 | ||
16 | PVC FLOWMETER DFM 165 BASIC 5-60 L WITH MAGNETIC FLOAT 10536520 | 10 | PVC | 0.104 | ||
16 | PVC FLOWMETER DFM 165 BASIC 10-100 L WITH MAGNETIC FLOAT 10536530 | 10 | PVC | 0.102 | ||
16 | PVC FLOWMETER DFM 165 BASIC 25-250 L WITH MAGNETIC FLOAT 10536540 | 10 | PVC | 0.098 | ||
20 | PVC FLOWMETER DFM 170 BASIC 5-50 L WITH MAGNETIC FLOAT 10536550 | 10 | PVC | 0.155 | ||
20 | PVC FLOWMETER DFM 170 BASIC 15-150 L WITH MAGNETIC FLOAT 10536560 | 10 | PVC | 0.151 | ||
20 | PVC FLOWMETER DFM 170 BASIC 25-250 L WITH MAGNETIC FLOAT 10536570 | 10 | PVC | 0.149 | ||
20 | PVC FLOWMETER DFM 170 BASIC 40-400 L WITH MAGNETIC FLOAT 10536580 | 10 | PVC | 0.143 | ||
25 | PVC FLOWMETER DFM 185 BASIC 15-150 L WITH MAGNETIC FLOAT 10536590 | 10 | PVC | 0.237 | ||
25 | PVC FLOWMETER DFM 185 BASIC 40-400 L WITH MAGNETIC FLOAT 10536600 | 10 | PVC | 0.231 | ||
25 | PVC FLOWMETER DFM 185 BASIC 60-600 L WITH MAGNETIC FLOAT 10536610 | 10 | PVC | 0.225 | ||
25 | PVC FLOWMETER DFM 185 BASIC 100-1000 L WITH MAGNETIC FLOAT 10536620 | 10 | PVC | 0.217 | ||
32 | PVC FLOWMETER DFM 350 BASIC 60-600 L WITH MAGNETIC FLOAT 10536630 | 10 | PVC | 0.544 | ||
32 | PVC FLOWMETER DFM 350 BASIC 100-1000 L WITH MAGNETIC FLOAT 10536640 | 10 | PVC | 0.532 | ||
40 | PVC FLOWMETER DFM 350 BASIC 150-1500 L WITH MAGNETIC FLOAT 10536650 | 10 | PVC | 0.706 |
