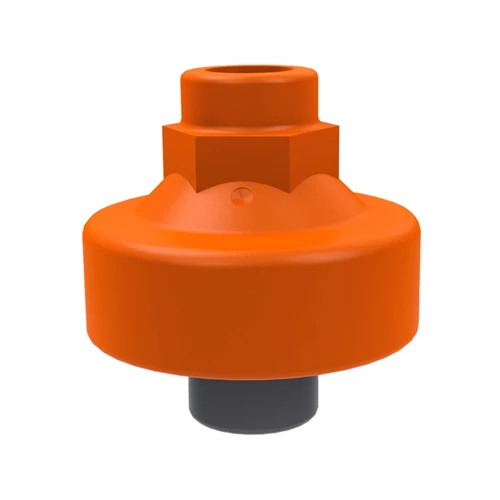

PVC PRESSURE GAUGE - PN10
PVC pressure transmitter
Functions
• Pressure measurement up to 10 bar
• EPDM membrane with PTFE coating on the side in contact with the medium
• Reliable protection of pressure gauges from aggressive media types
• Reliable pressure transfer due to generously dimensioned diaphragms
• Practical connection points with tips and threads
Additional options on request
• Free of surface disturbing substances
• NSF certification
• PFA permeation stop film
• Installation of various pressure gauges
Assembled by threaded joint.Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
| Dia. (inch) | Name | Pressure Rating | Dia. 2 (inch) | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
1/4" | PRESSURE GAUGE MDM902 - PN10 10539000 | 10 | PVC | 0.177 | |||
1/4" | PRESSURE GAUGE MDM902 - PN10 10539010 | 10 | PVC | 0.182 | |||
1/4" | NPT4"XPRESSURE GAUGE MDM902 - PN10 10539020 | 10 | 1/4" | PVC | 0.197 | ||
1/4" | NPT4"XPRESSURE GAUGE MDM902 - PN10 10539025 | 10 | 1/2" | PVC | 0.232 | ||
1/2" | PRESSURE GAUGE MDM902 - PN10 10539005 | 10 | PVC | 0.192 | |||
1/2" | PRESSURE GAUGE MDM902 - PN10 10539015 | 10 | PVC | 0.182 | |||
1/2" | NPT2"XPRESSURE GAUGE MDM902 - PN10 10539030 | 10 | 1/4" | PVC | 0.232 | ||
1/2" | NPT2"XPRESSURE GAUGE MDM902 - PN10 10539035 | 10 | 1/2" | PVC | 0.187 |
