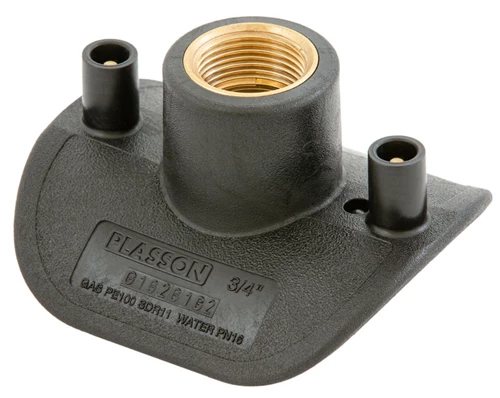

PLASSON ELECTRO FUSION SENSOR ADAPTOR - BRASS THREAD
The PLASSON sensor adaptor is an electrofusion saddle designed for easy and secure installation of sensors or similar equipment directly onto PE pipes in water and gas distribution systems. The saddle is electrically welded onto the pipe, ensuring a tight and durable connection. The thread is made of brass, providing high mechanical strength, wear resistance, and excellent corrosion protection—ideal for applications where a reliable threaded connection is essential over time.
This sensor adaptor is a unique solution on the market and is approved for full operating pressure in utility networks, making it especially suitable for applications where both safety and functionality are critical. It offers a flexible and efficient option for retrofitting measuring or monitoring devices without requiring major modifications to the existing pipe system.
Special tools are required for proper installation—these can be rented or purchased from Plast-Line A/S.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. (inch) | Name | Pressure Rating | Dia. 2 (inch) | Sub material | Weight per pcs | Diameter Span | ||
|---|---|---|---|---|---|---|---|---|
1/2" | PLASSON ELECTROFUSION SENSOR ADAPTOR - BRASS THREAD 13101320 | 16 | 1/2" | PE100 | 0.11 | 450.0 - 1200.0 | ||
1/2" | PLASSON ELECTROFUSION SENSOR ADAPTOR - BRASS THREAD 13101300 | 16 | 1/2" | PE100 | 0.11 | 110.0 - 400.0 | ||
3/4" | PLASSON ELECTROFUSION SENSOR ADAPTOR - BRASS THREAD 13101325 | 16 | 3/4" | PE100 | 0.12 | 450.0 - 12500.0 | ||
3/4" | PLASSON ELECTROFUSION SENSOR ADAPTOR - BRASS THREAD 13101305 | 16 | 3/4" | PE100 | 0.12 | 110.0 - 400.0 | ||
1" | PLASSON ELECTROFUSION SENSOR ADAPTOR - BRASS THREAD 13101310 | 16 | 1" | PE100 | 0.15 | 110.0 - 400.0 | ||
1" | PLASSON ELECTROFUSION SENSOR ADAPTOR - BRASS THREAD 13101330 | 16 | 1" | PE100 | 0.15 | 450.0 - 1200.0 |
