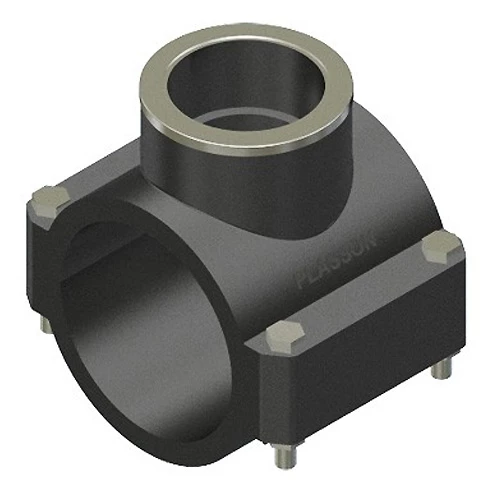

CLAMP SADDLE - STAINLESS STEEL BOLTS & NUTS
PP clamp saddle for use on plastic pipes. Stainless steel reinforcing ring, bolts and nuts in stainless steel and NBR gasket.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Has technical drawing
| Dia. | Dia. (inch) | Name | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|
20 | 1/2" | CLAMP SADDLE WITH STAINLESS STEEL BOLTS & NUTS 10460003-S | PP | 0.062 | ||
25 | 1/2" | CLAMP SADDLE WITH STAINLESS STEEL BOLTS & NUTS 10460005-S | PP | 7 | ||
25 | 3/4" | CLAMP SADDLE WITH STAINLESS STEEL BOLTS & NUTS 10460010-S | PP | 0.073 | ||
32 | 1/2" | CLAMP SADDLE WITH STAINLESS STEEL BOLTS & NUTS 10460015-S | PP | 0.135 | ||
32 | 3/4" | CLAMP SADDLE WITH STAINLESS STEEL BOLTS & NUTS 10460020-S | PP | 0.135 | ||
32 | 1" | CLAMP SADDLE WITH STAINLESS STEEL BOLTS & NUTS 10460025-S | PP | 0.142 | ||
40 | 1/2" | CLAMP SADDLE WITH STAINLESS STEEL BOLTS & NUTS 10460030-S | PP | 0.141 | ||
40 | 3/4" | CLAMP SADDLE WITH STAINLESS STEEL BOLTS & NUTS 10460035-S | PP | 0.143 | ||
40 | 1" | CLAMP SADDLE WITH STAINLESS STEEL BOLTS & NUTS 10460040-S | PP | 0.151 | ||
50 | 1/2" | CLAMP SADDLE WITH STAINLESS STEEL BOLTS & NUTS 10460045-S | PP | 0.178 | ||
50 | 3/4" | CLAMP SADDLE WITH STAINLESS STEEL BOLTS & NUTS 10460050-S | PP | 18 | ||
50 | 1" | CLAMP SADDLE WITH STAINLESS STEEL BOLTS & NUTS 10460055-S | PP | 0.187 | ||
50 | 1 1/4" | CLAMP SADDLE WITH STAINLESS STEEL BOLTS & NUTS 10460060-S | PP | 0.212 | ||
63 | 1/2" | CLAMP SADDLE WITH STAINLESS STEEL BOLTS & NUTS 10460065-S | PP | 0.277 | ||
63 | 3/4" | CLAMP SADDLE WITH STAINLESS STEEL BOLTS & NUTS 10460070-S | PP | 28 |
