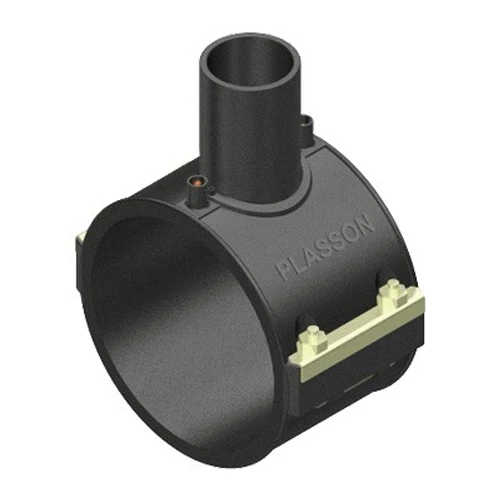

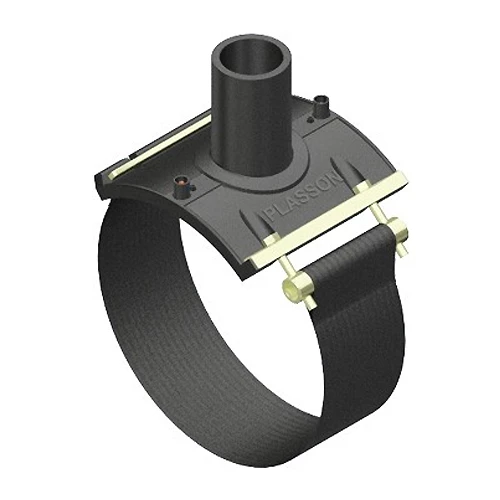

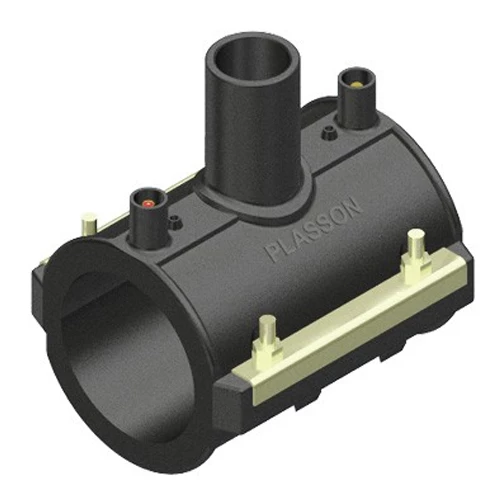

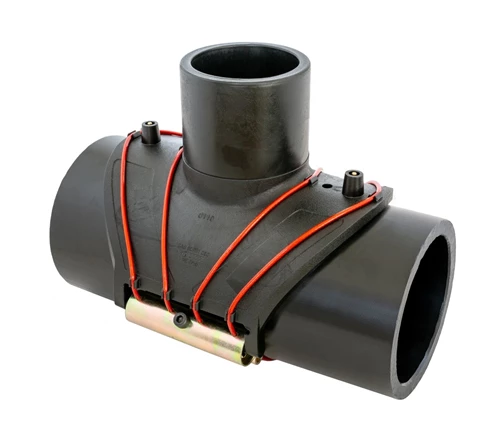

PLASSON ELECTRO FUSION BRANCH SADDLE WITH UNDERPART

A PLASSON electrofusion saddle tee is a specially designed electrofusion fitting used to create a branch connection from an existing PE pipe. The fitting features a saddle that is welded directly onto the pipe using electrofusion, ensuring a strong, tight, and long-lasting branch connection.

The electrofusion saddle tee is ideal for both water and gas installations and can be used to add new service lines, branches, or connections to existing pipelines. It is equipped with integrated welding zones and 4.0 mm pins, making it compatible with most standard electrofusion welding machines. It can be welded onto PE80, PE100, and PE100-RC pipes.

With its robust construction and precise fit, the PLASSON electrofusion saddle tee ensures high operational reliability and minimal risk of leakage, even under high pressure and demanding conditions. It is a dependable choice when flexibility and efficient installation are essential.

Certificates
DK-VANDDVGWNordisk Polymark

Need help?

At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!

Read more
KKKKKK (1)
Customer service
+45 63 40 41 00
Diameter (mm)
Dia.Dia. 2NamePressure RatingSDRSub materialWeight per pcs
63
32
PLASSON ELECTROFUSION BRANCH SADDLE WITH UNDERPART 13101497
1611PE1000.39
63
50
PLASSON ELECTROFUSION BRANCH SADDLE WITH UNDERPART 13101499
1611PE1000.43
63
63
PLASSON ELECTROFUSION BRANCH SADDLE WITH UNDERPART 13101500
1611PE1000.46
63
40
PLASSON ELECTROFUSION BRANCH SADDLE WITH UNDERPART 13101498
1611PE1000.4
75
32
PLASSON ELECTROFUSION BRANCH SADDLE WITH UNDERPART 13101501
1611PE1000.43
75
40
PLASSON ELECTROFUSION BRANCH SADDLE WITH UNDERPART 13101502
1611PE1000.45
75
63
PLASSON ELECTROFUSION BRANCH SADDLE WITH UNDERPART 13101505
1611PE1000.52
75
50
PLASSON ELECTROFUSION BRANCH SADDLE WITH UNDERPART 13101503
1611PE1000.47
90
32
PLASSON ELECTROFUSION BRANCH SADDLE WITH UNDERPART 13101506
1611PE1000.52
90
40
PLASSON ELECTROFUSION BRANCH SADDLE WITH UNDERPART 13101507
1611PE1000.53
90
50
PLASSON ELECTROFUSION BRANCH SADDLE WITH UNDERPART 13101508
1611PE1000.55
90
90
PLASSON ELECTROFUSION BRANCH SADDLE WITH UNDERPART 13101509
1611PE1000.93
90
63
PLASSON ELECTROFUSION BRANCH SADDLE WITH UNDERPART 13101510
1611PE1000.61
110
32
PLASSON ELECTROFUSION BRANCH SADDLE WITH UNDERPART 13101511
1611PE1000.59
110
90
PLASSON ELECTROFUSION BRANCH SADDLE WITH UNDERPART 13101520
1611PE1000.95
