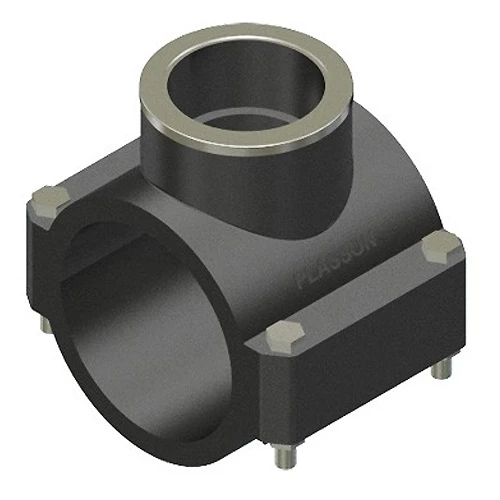

PP CLAMP SADDLE
PP clamp saddle for use on plastic pipes. Stainless steel reinforcing ring, bolts and nuts in galvanized steel and NBR gasket.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Pressure Rating
Has technical drawing
| Dia. | Dia. (inch) | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
20 | 1/2" | CLAMP SADDEL 10450000 | 12.5 | PP | 0.063 | ||
25 | 1/2" | CLAMP SADDEL 10450005 | 12.5 | PP | 0.07 | ||
25 | 3/4" | CLAMP SADDEL 10450010 | 12.5 | PP | 0.073 | ||
32 | 1/2" | CLAMP SADDEL 10450015 | 12.5 | PP | 0.133 | ||
32 | 3/4" | CLAMP SADDEL 10450020 | 12.5 | PP | 0.135 | ||
32 | 1" | CLAMP SADDEL 10450025 | 12.5 | PP | 0.142 | ||
32 | 1" | CLAMP SADDEL 10450026 | PP | 0.146 | |||
40 | 1/2" | CLAMP SADDEL 10450030 | 12.5 | PP | 0.141 | ||
40 | 3/4" | CLAMP SADDEL 10450035 | 12.5 | PP | 0.143 | ||
40 | 1" | CLAMP SADDEL 10450040 | 12.5 | PP | 0.151 | ||
40 | 1" | CLAMP SADDEL 10450041 | PP | 0.135 | |||
50 | 1/2" | CLAMP SADDEL 10450045 | 12.5 | PP | 0.179 | ||
50 | 1" | CLAMP SADDEL 10450055 | 12.5 | PP | 0.187 | ||
50 | 1 1/4" | CLAMP SADDEL 10450060 | 12.5 | PP | 0.212 | ||
50 | 1/2" | CLAMP SADDEL 10450046 | PP | 0.131 |
